Transceiver RFI Kits



FSB61-1/4, ID=1/4", RFI Range 200-2000 MHz, Bulk pack of 10

FSB61-1/4-10
$34.95
In stock
1
Product Details
Initial Permeability (@ 10KHz): 125
Material: NiZn
Max cable size - in/mm: .25/6.3
OD (A) - in/mm: 1.22/14.3
ID (B) - in/mm: .26/6.6
Length (C) - in/mm: 1.55/39.4
Z (ohms per bead - single turn 100 MHz): 230
Z ohms (per bead - single turn 250 MHz): 355
Z (ohms per bead - single turn 1000 MHz): 420
: 10
: 4.95

Ferrite Snap On, ID = .26 in/6.6mm, Mix 61, Bulk pack of 10

Save this product for later



Also make sure you connect a good RF ground to the transceiver ground post.

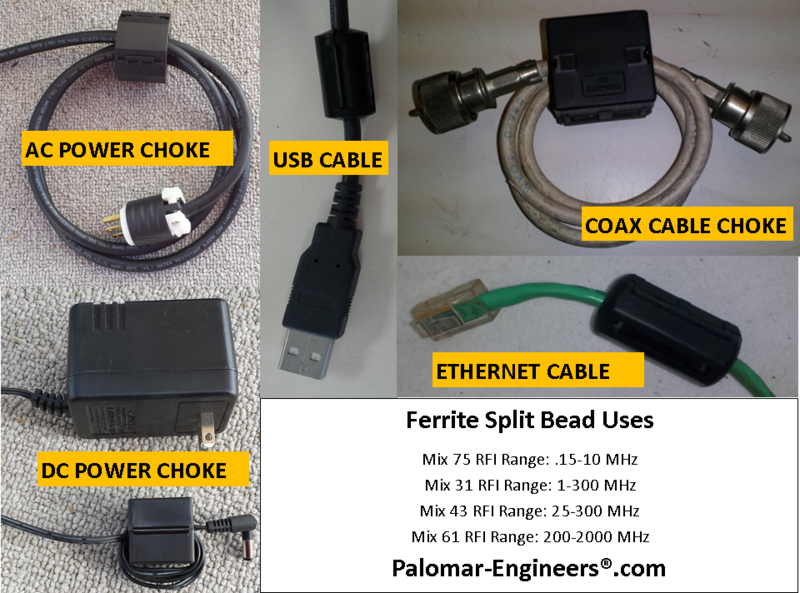

Note to Flex Radio users:  Use snap on ferrites for firewire cable, speaker cable and mic cable,  Ring ferrites for Antenna output and DC power.

For additional RFI suppression, use a feed line choke at the antenna to suppress common current on the coax feed line – see our store for feed line choke alternatives for use at the antenna.



If you use a linear amplifier we have RFI kits for linear amplifiers that help suppress RFI in your shack or in your neighbor’s house.
