6:1 Baluns/Ununs

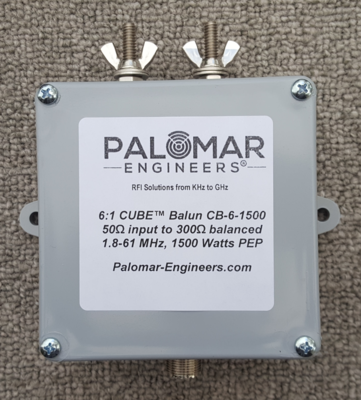

Model CB-6-1500 is a 6:1 (300:50) voltage balun housed in a Nema enclosure box (4″ x 4″ x 2″) with two top studs capable of input power levels up to 1.5KW PEP/500 watts continuous when used with a matched load. The 6:1 ratio takes 50 ohms input and matches to 300 ohms balanced output from 1.8-61 MHz with SWR < 1.5:1 under matched load conditions. A great balun for windoms, OCF antennas >60 feet over ground, Hertz and folded dipole antennas, T2FD etc. Dual core, Ruthroff style balun. Choose version with side eye bolts for wire attachments for OCF dipole use.

New - Baluns and Termination Resistors for T2FD, BBTD, ALE Antennas
