Bullet EFLW Antenna Wire Kits (41, 71, 92, 111, 155, 173, 203, 268 feet) includes coated wire, insulator and connector lug - preassembled
Product Details
Brand: Palomar Engineers, Inc.
Country/Region of Manufacture: USA
Bullet End Fed Long Wire (EFLW) Antenna Wire Kit for end fed long wire antennas - choose 41, 71, 111, 155, 173, 203, 268 foot lengths complete with end insulator, #14 Insulated stranded copper wire and spade lugs and heat shrink for lugs for attachment to an optional Bullet 9:1 unun.
Insulators are a very stealthy, strong, pair of 2 PVC, 2 1/4" long. 1" wide. 1 1/8" hole separation wire antenna insulators and may be black, gray or white depending upon inventory
See related products for 9:1 transformers from 100 watts to 5KW, 9:1 toroid kits, and feed line chokes.
For a complete installation you will need 9:1 unun, wire kit, appropriate length of coax, and feed line choke (SOFLC is easiest to use and change position as you tune the antenna).
Bullet Antenna Length - feet (41, 71, 92, 111, 155, 173)

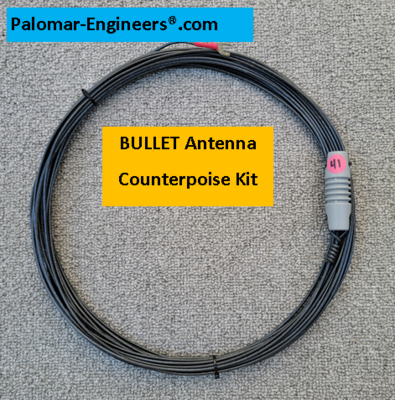

Corresponding Counterpoise length feet (16, 42, 90, 37, 95, 80) - place feed line choke on coax at this measured length from 9:1 unun
On Sale
50:450 ohm (9:1) CUBE™ Unun, 1.8-61 MHz, 1.5 KW, End Fed Long Wire
50:450 ohm (9:1) CUBE™ Unun, 1.8-61 MHz, 1.5 KW, End Fed Long Wire
SKU CU-9-1500
List price $129.95
Save 15%
$109.95
Also make sure you connect a good RF ground to the transceiver ground post.
Note to Flex Radio users: Use snap on ferrites for firewire cable, speaker cable and mic cable, Ring ferrites for Antenna output and DC power.
For additional RFI suppression, use a feed line choke at the antenna to suppress common current on the coax feed line – see our store for feed line choke alternatives for use at the antenna.
If you use a linear amplifier we have RFI kits for linear amplifiers that help suppress RFI in your shack or in your neighbor’s house.
