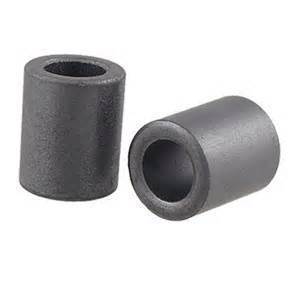

FB56-31 - 1/4" ID, RFI Range 1-300 MHz
SKU FB56-31-1
$1.65
Bulk pricing available for quantities of 10 units or more
1
Buy more, save more
Quantity | Price per item | Discount |
10 items | $1.50 | 9% off |
100 items | $1.25 | 24% off |
Save this product for later
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in
FB56-31 - 1/4" ID, RFI Range 1-300 MHz
Product Details
Initial Permeability (@ 10KHz): 1500
Material: MnZn
Max cable size - in/mm: .25/6.3
OD (A) - in/mm: .562/14/3
ID (B) - in/mm: .25/6.4
Length (C) - in/mm: 1.125/28.6
Z (ohms per bead - single turn 1 MHz): 35
Z (ohms per bead - single turn 5 MHz): 91
Z (ohms per bead - single turn 10 MHz): 119
Z (ohms per bead - single turn 25 MHz): 181
Z (ohms per bead - single turn 100 MHz): 300
Z ohms (per bead - single turn 250 MHz): 280
Ferrite Slip On Bead - ID = .25 in/6.4mm - Mix 31
