G5RV/ZS6BKW Antennas

The ZS6BKW antenna is a better match for our bands than the G5RV. The method of construction and tuning  is essentially the same for both antennas but the dimensions are different.

Here is the ZS6BKW antenna installed at AK6R fine tuned for the CW/FT8 frequencies on 40-20-17-12-10 meters.  An excellent antenna when installed at 30 feet or higher and no tuner required avoiding the tuner losses and constant retuning.  If you want to work all bands from 80-10 install an antenna tuner between the 1:1 balun and the amplifier and ignore the 39/40 switch.

Is this the best FT8 antenna?  – I think so as I has made over 70,000 contacts and it still is a proven winner -Good world wide DX, easy to install, no tuner and takes full legal limit.

PAL ZS68006 Ant Layout - G5RV/ZS6BKW Antennas



Here are several different 1:1 baluns you can use depending on power requirements:

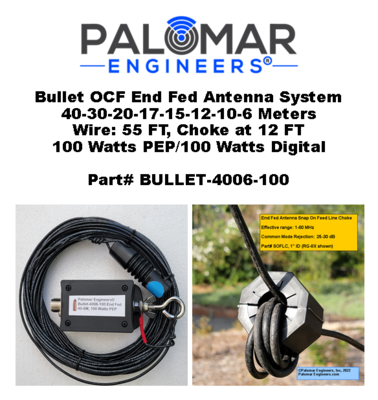

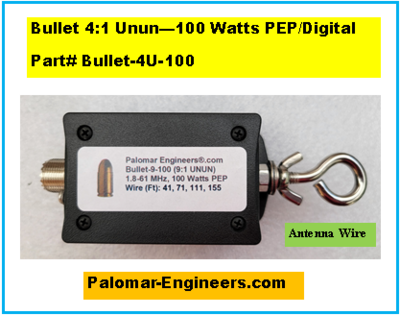

Off Center Fed (OCF) antennas are very convenient as they will allow multiple bands of operation with a simple wire antenna which is fed off center. For example, the Palomar Engineers 4010 OCF is a very popular antenna and consists of an off center fed dipole with sides of 55 feet and 11 feet and it will work all bands from 40-6 meters.The End Fed OCF uses the same dimensions but the wire section is 55 feet as in the OCF and the coax outer braid is used for the “other” short side of the OCF dipole. We place a choke on the coax at the 12 foot distance from the matching unit and we essentially have an OCF antenna with its great frequency range, but with only a 55 foot wire length instead of the 66 feet required by the regular OCF. You feed the antenna from one end which may be more convenient for some installations. This antenna will work on 40-30-20-17-15-12-10 and 6 meters. Most bands are under 3:1 SWR and easily tuned by your transceiver’s internal antenna tuner or external tuner used with an amplifier. (see BULLET-4006 for specific details and SWR curves).

These antennas are MUCH BETTER PERFORMERS than End Fed Half Wave antennas because they work the WARC bands, DO NOT HAVE A DANGEROUS HIGH VOLTAGE at the antenna connection and are SHORTER to fit in smaller spaces yet provide more band coverage up to 6 meters!




Here is the Coax Noise Filter used to suppress coax common mode currents (works for all type of antennas)



PDF of ZS6BKW at AK6R Construction Article HERE: My ZS6BKW Antenna
