G5RV/ZS6BKW Antennas

The ZS6BKW antenna is a better match for our bands than the G5RV. The method of construction and tuning  is essentially the same for both antennas but the dimensions are different.

Here is the ZS6BKW antenna installed at AK6R fine tuned for the CW/FT8 frequencies on 40-20-17-12-10 meters.  An excellent antenna when installed at 30 feet or higher and no tuner required avoiding the tuner losses and constant retuning.  If you want to work all bands from 80-10 install an antenna tuner between the 1:1 balun and the amplifier and ignore the 39/40 switch.

Is this the best FT8 antenna?  – I think so as I has made over 70,000 contacts and it still is a proven winner -Good world wide DX, easy to install, no tuner and takes full legal limit.

PAL ZS68006 Ant Layout - G5RV/ZS6BKW Antennas



Here are several different 1:1 baluns you can use depending on power requirements:

DC-AC Inverter Common Mode RFI/Noise Filter Kit for DC in and AC Output

SKU RFI-INVERTER
$34.95
Bulk pricing available for quantities of 2 units or more
1
Buy more, save more
QuantityPrice per itemDiscount
2 items$31.959% off
10 items$27.9520% off
Save this product for later
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in
Share this product with your friends
DC-AC Inverter Common Mode RFI/Noise Filter Kit for DC in and AC Output
Product Details
MPN: RFI-INVERTER
Type: NEW
Country/Region of Manufacture: United States
Filter Power Rating (PEP watts): n/a
RFI Suppression Range (MHz): 150 KHz - 10 MHz
Typical Use:: DC-AC switch mode inverters common mode noise suppression

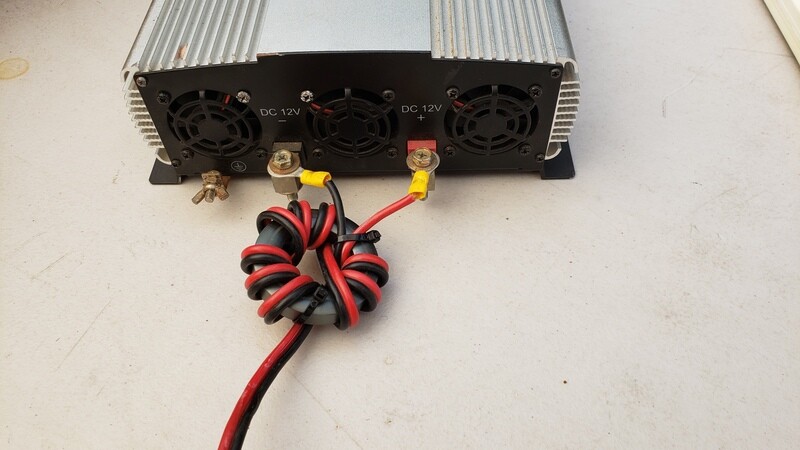

The RFI-INVERTER is a common mode noise filter set which filters both the DC input and AC output of DC-AC inverters. These filters effectively isolate the DC power cord and AC output cable from acting as antennas for the internal switching power supply. The filters suppress RFI from 150 KHz to 10 MHz. Simple to install on cables without any device modification. DC filter is a ring and AC output filter is a snap on with 1" inside diameter hole.

For larger cables use the ACCF-3 and DCCF-3 ring filters with 3" inside diameters and use multiple turns on each cable for best results.

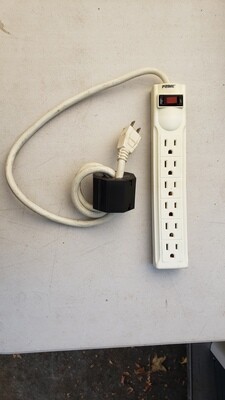

AC power strip shown in picture NOT INCLUDED - this is user supplied and shown for illustration of filter installation.






Here is the Coax Noise Filter used to suppress coax common mode currents (works for all type of antennas)



PDF of ZS6BKW at AK6R Construction Article HERE: My ZS6BKW Antenna
