HF Linear Amplifier RFI Kit - Generic (all brands) AC Powered - 4 Filters for RF In/Out, AC power, Relay/PTT

SKU RFI-LA-GAC
$54.95
Bulk pricing available for quantities of 2 units or more
1
Buy more, save more
QuantityPrice per itemDiscount
2 items$49.959% off
10 items$44.9518% off
100 items$42.7522% off
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
HF Linear Amplifier RFI Kit - Generic (all brands) AC Powered - 4 Filters for RF In/Out, AC power, Relay/PTT
Product Details
MPN: RFI-LA-GAC
Type: New
Country/Region of Manufacture: United States
Filter Power Rating (PEP watts): coax cable limit
RFI Suppression Range (MHz): 1-300 MHz
# Ferrite Filters: 4
Typical Use:: linear amplifier SOURCE RFI suppression

This is a generic linear amplifier RFI kit for AC powered amplifiers. Works on many popular amplifiers including:

ACOM 600, 1000, 1500, 2000, etc - all models

ALPHA models – all AC models including 76, 77, 78, 86, 87A, 89, 91B, 99, 274, 374, 8100, 8406, 8410, 9500

AMERITRON models – all AC models including AL80A, AL80B, AL82B, AL572, AL800, AL800H, AL811, AL811H, AL1200

HEATHKIT models – all AC models including SB200, SB201, SB220, SB221, SB230, HA10, HL2200, SB1000

HENRY RADIO models – all AC models including 1K, 2K, 3K, 4K, 5K, 8K

KENWOOD models – all AC models including TL922, TL922A

DENTRON - all models

All AC powered rigs like B&W, Collins, Command, Dentron, Drake, Gonset, Hallicrafters, Hammarlund, Hunter, Icom, Palomar, Palstar, QRO, SBE, Swan, Tokyo Hy-Power, Yaesu and many military and commercial HF amplifiers.

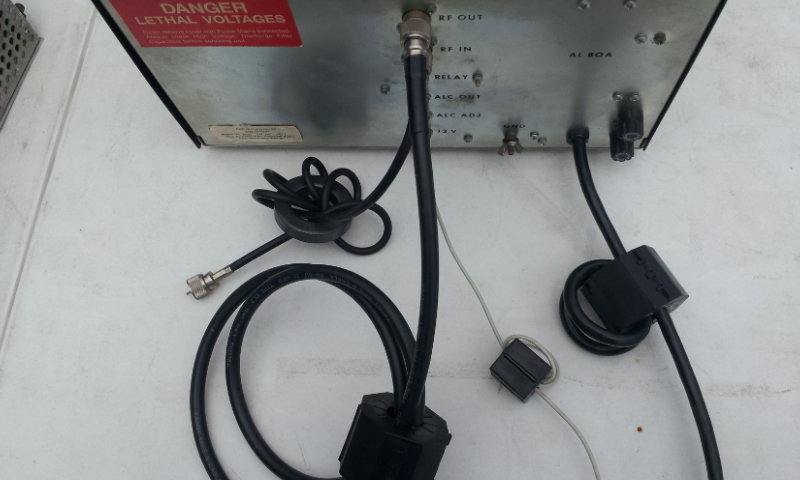

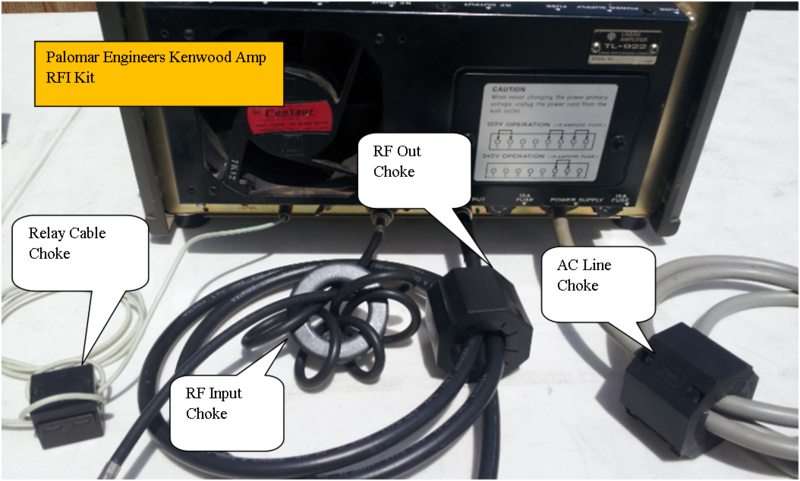

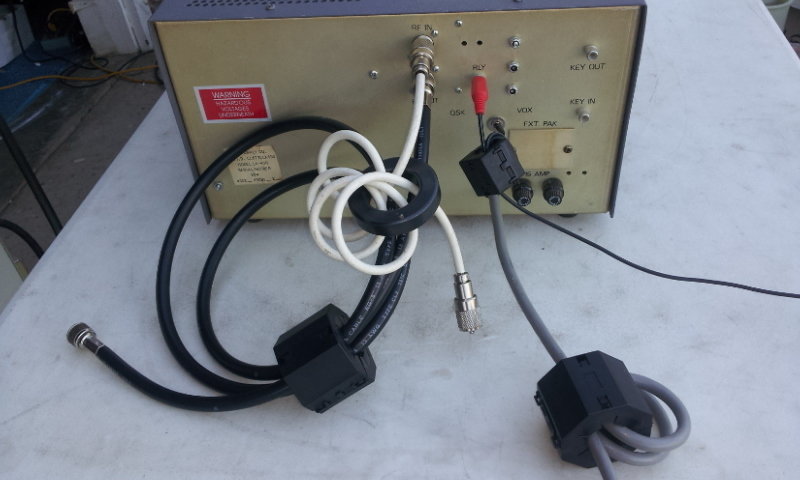

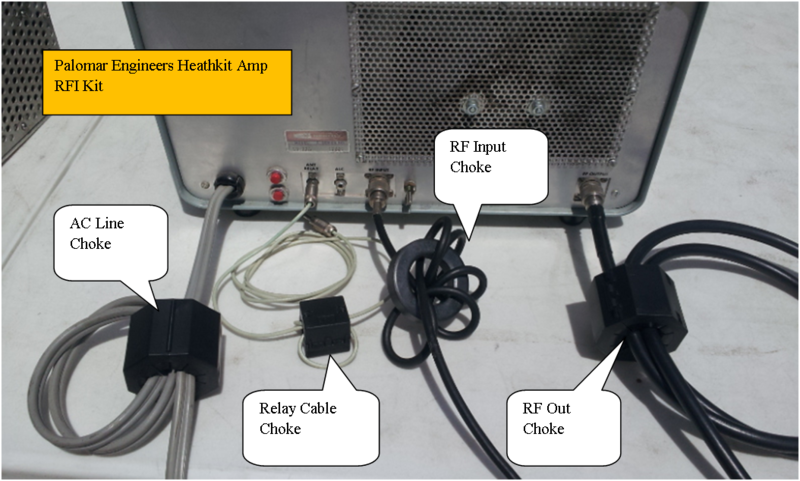

Included are the following chokes and installation guidelines:

RF Input: F240 toroid – 5-9 turns of RG-58 size coax through center

RF Output: FSB-1 (Big Clamp on) – 3 turns of RG-8 size cable

Relay Cable: FSB-1/2 – multiple turns through choke – ½” diameter hole

AC Power Line: FSB-1 (Big Clamp on) – 3 turns through center

Other cool products
Recently viewed products
Palomar Engineers offers a variety of impedance transformers configured as Baluns (balanced coax to unbalanced load) or Ununs (unbalanced coax to unbalanced load) for  matching typical 50 ohm feed line impedances to antenna or other load impedances.

We specify impedance ratios as an output to input ratio where the output (or load) is given first and the input is given second (e.g. 100:50 (2:1) would mean a 100 ohm output and a 50 ohm input; a 25:50 (1:2) would mean a 25 ohm load and a 50 ohm input).  Most all products use a 50 ohm input unless otherwise specified.

We have products that are available as kits for the do-it-yourself (DIY) person or fully assembled and tested units for the “Plug & Play” crowd.

Our impedance transformers are available using two different topologies: Binocular cores or  toroid cores with multiple turns for increased effectiveness and wide band frequency transformations.  We utilize single and multiple core transformers using high order windings when needed to extend product performance.

We rate the power ratings as watts PEP (Peak Envelop Power) with standard duty cycles for various modes. To determine the PEP rating required for your needs, see: Choke & Transformer Power Ratings

This website page serves as a link page to the frequency ranges of our impedance transformers configured as either baluns or ununs.  You can click on a picture to go to the specific page about the products described in the picture.
