50:200 (4:1) CUBE™ Unun, 1.8-61 MHz, 1500/5000 Watts PEP, End Fed, Vertical, MonopoleProduct DetailsInput ohms/Output ohms: 50/100-400Frequency Range < 2:1 SWR (MHz): 1.8-61 (1.5KW), 1.8-31 MHZ for 5000/5000HDPEP Power Rating (watts): 1500/5000Insertion Loss (dB): .15Input Connector: SO-239Output Connector(s): Wingnut/EyeboltTransformer Topology: Broadband FerriteHardware Type: StainlessEnclosure Size: 4" x 4" x 2"Antenna Compatability: verticals, slopers, monopolesPurpose. The CU-4-1500 is used as a 4:1 (200 ohm unbalanced load to 50 ohm unbalanced source) broadband transformer for 50 ohm coax cable rated at at 1500 PEP into 200 ohms unbalanced load from 1.8-61 MHz. Excellent for 43 foot verticals and also slopers (51', 85' or 119" work great)

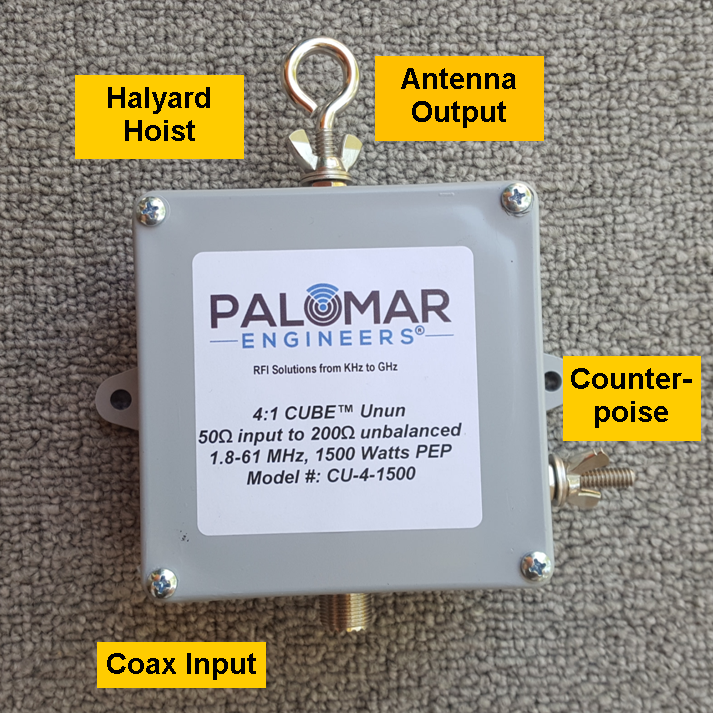

USE: The top connector is for the 200 ohm unbalanced output, and the side connector is for a ground rod or radial connection.The SO-239 input connector shield/ground is shared with the ground connector.
For best results use a feed line choke between the CU-4-1500 and the coax input to isolate the coax from becoming part of the antenna. Our Maxi-Choker (MC-1-3000) is an excellent companion for this unun.
This Unun is a very efficient match for many 43 and 31-33 foot multi-band verticals including the S9, ZeroFive, MFJ and DX Engineering vertical antennas.

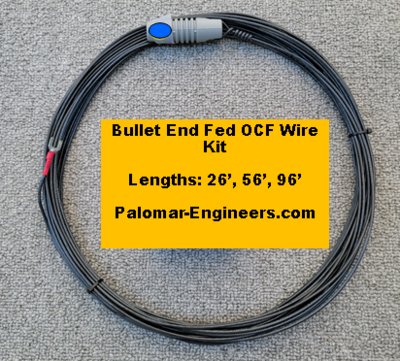

The CU-4-1500 is also useful for end fed OCF antennas utilizing a 4:1 unun and a coax feed line choke to set the antenna length for the "short" side of the OCF.
CU-4-5000 is in a 4" x 4" x 2" NEMA enclosure and weighs 3 pounds and is specified for 1.8-31 MHz - rated at 5KW PEP
CU-4-5000HD is in a 4" x 4" x 4" NEMA enclosure, contains 50% more ferrite cores then the 5000 and weighs 4 pounds and is specified for 1.8-31 MHz - rated at 4KW continuous duty, 5K+ PEP. The HD version of this unun is CUSTOM MADE PER ORDER - PLEASE ALLOW 2 WEEKS FOR MANUFACTURING PRIOR TO SHIPMENT.
Purpose. The CU-4-1500 is used as a 4:1 (200 ohm unbalanced load to 50 ohm unbalanced source) broadband transformer for 50 ohm coax cable rated at at 1500 PEP into 200 ohms unbalanced load from 1.8-61 MHz. Excellent for 43 foot verticals and also slopers (51', 85' or 119" work great)
USE: The top connector is for the 200 ohm unbalanced output, and the side connector is for a ground rod or radial connection.The SO-239 input connector shield/ground is shared with the ground connector.For best results use a feed line choke between the CU-4-1500 and the coax input to isolate the coax from becoming part of the antenna. Our Maxi-Choker (MC-1-3000) is an excellent companion for this unun.
This Unun is a very efficient match for many 43 and 31-33 foot multi-band verticals including the S9, ZeroFive, MFJ and DX Engineering vertical antennas.
The CU-4-1500 is also useful for end fed OCF antennas utilizing a 4:1 unun and a coax feed line choke to set the antenna length for the "short" side of the OCF.
CU-4-5000 is in a 4" x 4" x 2" NEMA enclosure and weighs 3 pounds and is specified for 1.8-31 MHz - rated at 5KW PEP
CU-4-5000HD is in a 4" x 4" x 4" NEMA enclosure, contains 50% more ferrite cores then the 5000 and weighs 4 pounds and is specified for 1.8-31 MHz - rated at 4KW continuous duty, 5K+ PEP. The HD version of this unun is CUSTOM MADE PER ORDER - PLEASE ALLOW 2 WEEKS FOR MANUFACTURING PRIOR TO SHIPMENT.
