The Ferrite Ring Combo Pack is a convenient solution for troubleshooting RFI/EMI from unknown frequencies or multiple frequencies that require multiple suppression mixes. Included in this combo pack are ten 2.4″ OD/1.4″ ID ring toroids as follows:
Mix 75 effective from .15-10 MHz including AM Broadcast band – quantity: 3
Mix 31 effective from 1-300 MHz for general purpose – quantity: 4
Mix 61 effective from 200-2000 MHz for cell phone, WIFI, HDTV, Cable TV interference – quantity: 3

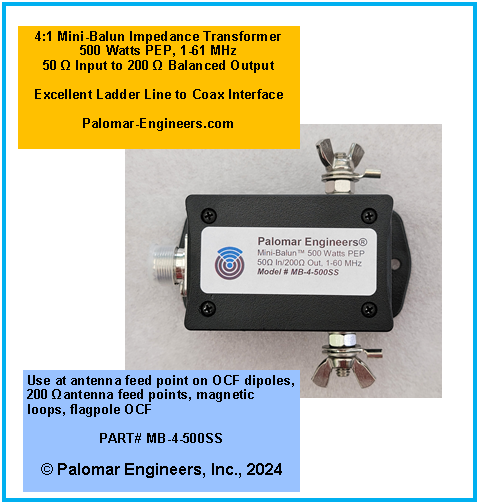

MINI-BALUN Features:
- Uses proprietary Multi-Turn, Multi-Ferrite technology for maximum power transfer and minimum SWR
- 500 Watts PEP, 50 ohm SO-239 connectors In, Dual Side Stud Output, 1-61 MHz (usable to 100 MHz) - AKA 4:1 BALUN
- Works for coax fed antennas from 1.8-61 MHz (160-6 meters) - excellent for multi-band loops, OCF, G5RV/ZS6BKW or Flag Pole OCF antennas fed with ladder line.
- 2-5 times more wider bandwidth and higher power then competing baluns of similar power ratings
This balun has a SO-239 input and 1/4" side studs output.

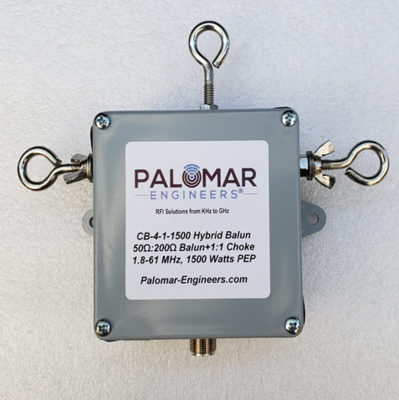

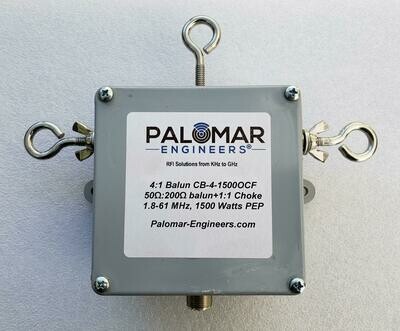

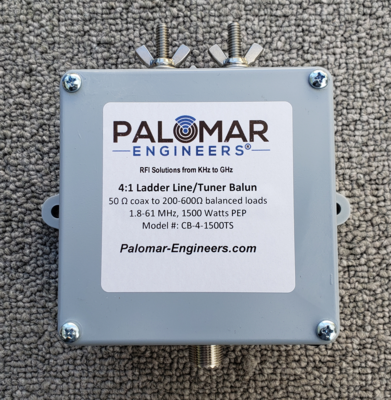

For Higher Power needs use our CB-4-1500TS or CB-4-5000TS
The ring toroids are useful for AC/DC common mode choking with multiple turns as shown below
 AC Cable on F-240 Toroid – 7 turns |
 DC Cable on F240 – 4 turns |
The ring toroids can also be used on coax or signal lines as shown below:
 RG58 12 turns on FT240 |
 Ethernet Cable on F-240 Toroid – 7 turns |
For RFI/EMI wrap as many turns as possible for higher choking (under 30 mHz).
