Flex Radio 5000 Transceiver RFI and Noise Reduction Kit, RFI Range 1-60 Mz, 8 Filters


Flex Radio 5000 Transceiver RFI  and Noise Reduction Kit, RFI Range 1-60 Mz, 8 Filters RFI-FLEX-5000

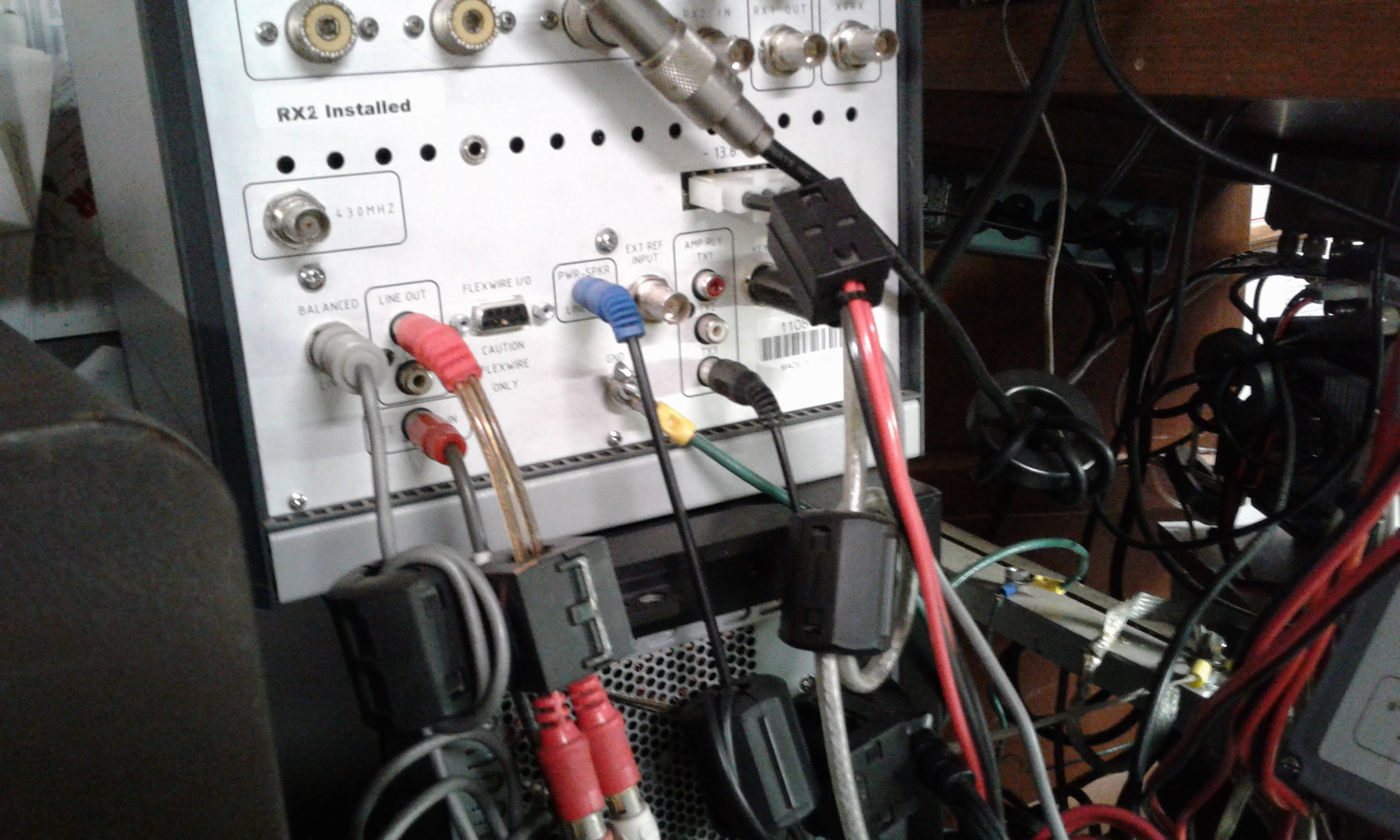

Flex Radio 5000 RFI kit is designed to be installed on your radio transceiver to reduce Radio Frequency Interference (RFI) caused by common mode current on the coax output (all 3) of your radio, the AC/DC power cable, mic input, USB transverter RX/TX, and 10MHz clock input, speaker, fire wire I/O, and flex wire I/O.

This kit will help reduce or eliminate:

1. “Hot mic” RFI caused by poor grounding of antennas or common mode currents from linear amps feeding unbalanced (coax fed) antennas without baluns/line isolators.

2. RFI to neighbor’s electronic devices including audio/video systems, computers, telephones, garage door openers, etc.

3. RFI to your other radios, audio/video systems, computers, telephones, etc.

A side benefit is a reduction in noise floor in your receiver depending on the amount of noise being introduced by common mode currents (which are blocked/reduced by the chokes in this kit).

These chokes use a special mix of ferrite core material that is effective in suppressing radio frequency interference from transmitters and high noise floor on receivers.

The split beads beads are easy to use, don’t require modification of the protected equipment and work in almost all cases, even when plug-in filters fail.

Use of the chokes often helps cure SWR problems between transceiver and a linear amp and between transceiver and antenna tuner or direct to antenna. The DC power line choke helps keep common mode current out of the power line which could cause interference to other devices connected to the same power line if not suppressed.

Kit includes 3 2.4" ring filters and 5 1/2" ID split beads and installation instructions.

For additional RFI suppression, use a feed line choke at the antenna feed point to suppress common current on the coax feed line and a coax noise filter at the radio end of the coax to reduce common mode noise.

If you use a linear amplifier use an amplifier RFI kit for additional RFI interference suppression.

$64.95 In stock
UPC:Does not apply
Brand:Palomar Engineers
Country/Region of Manufacture:United States
Filter Power Rating (PEP watts):500
RFI Suppression Range (MHz):1-300 MHz
# Ferrite Filters:8
Enclosure Size (inches):n/a
Typical Use::AC/DC power, RF output, 6 additional I/O lines
