FB68-31 - 3/8" ID, RFI Range 1-300 MHz

FB68-31

FB68-31 - 3/8" ID, RFI Range 1-300 MHz FB68-31

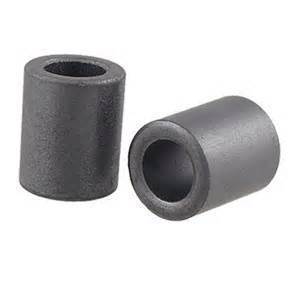

Ferrite Slip On Bead, ID = .375in/9.5mm, Mix 31

$1.75 In stock
Initial Permeability (@ 10KHz):1500
Material:MnZn
Max cable size - in/mm:.25/6.3
OD (A) - in/mm:.687/17.45
ID (B) - in/mm:.375/9.5
Length (C) - in/mm:1.125/28.6
Z (ohms per bead - single turn 1 MHz):27
Z (ohms per bead - single turn 5 MHz):69
Z (ohms per bead - single turn 10 MHz):89
Z (ohms per bead - single turn 25 MHz):138
Z (ohms per bead - single turn 100 MHz):225
Z ohms (per bead - single turn 250 MHz):265
FB68-31 - 3/8" ID, RFI Range 1-300 MHz
