FB102-31 - 1/2" ID, RFI Range 1-300 MHz

FB102-31-1

FB102-31 - 1/2" ID, RFI Range 1-300 MHz FB102-31-1

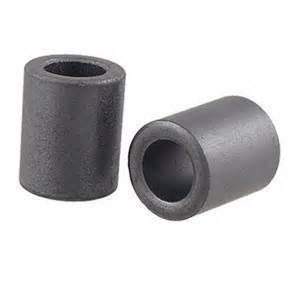

Ferrite Slip On Bead, ID = .505in/12.8mm, Mix 31, 1 piece

$3.3 In stock
MPN:FB102-31
Initial Permeability (@ 10KHz):1500
Material:MnZn
Max cable size - in/mm:.5/12.6
OD (A) - in/mm:1.02/25.9
ID (B) - in/mm:.505/12.8
Length (C) - in/mm:1.125/28.6
Z (ohms per bead - single turn 1 MHz):31
Z (ohms per bead - single turn 5 MHz):98
Z (ohms per bead - single turn 10 MHz):120
Z (ohms per bead - single turn 25 MHz):205
Z (ohms per bead - single turn 100 MHz):340
Z ohms (per bead - single turn 250 MHz):315
Case/Box lot size:212
