50:300 (6:1) CUBE™ Balun, 1-61 MHz, 1.5/3KW (choose top stud/eyebolt/power rating)

In stock
Product Details
MPN: CB-6-1500,CB-6-3000
Input ohms/Output ohms: 50 in, 300 out
Frequency Range < 2:1 SWR (MHz): 1-61
PEP Power Rating (watts): 1500/3000
Weight (pounds): 1500=2#, 3000=4 #

1500/3000 Watt 6:1 CUBE Balun™ – Model CB-6-1500/3000

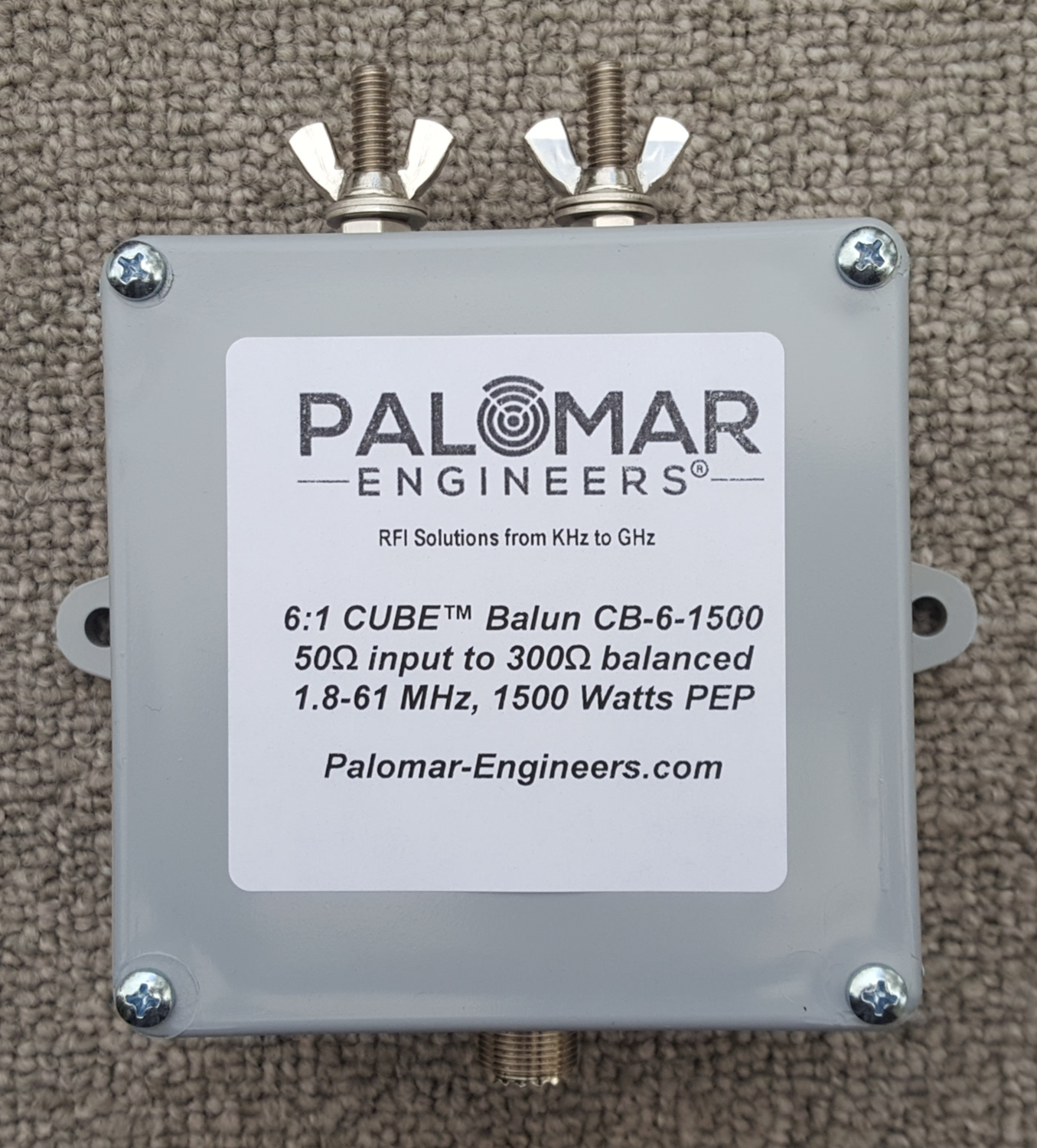

Model CB-6-1500/3000 is a 6:1 (300:50) balun housed in a NEMA enclosure box (1.5KW in 4″ x 4″ x 2″, 3KW in 6" x 6" x 4") with two top studs capable of input power levels up to 1.5KW PEP watts when used with a matched load. The 6:1 ratio takes 50 ohms input and matches to 300 ohms balanced output from 1-61 MHz with SWR < 1.5:1 under matched load conditions. A great balun for windoms, OCF antennas >60 feet over ground, Hertz and folded dipole antennas, T2FD etc. 8 core, Use “EB” version with side eye bolts for wire attachments for OCF dipole use.

Typical SWR and impedance transformation from 1-61 MHZ shown below:

CB 6 1500 Graph png - Store

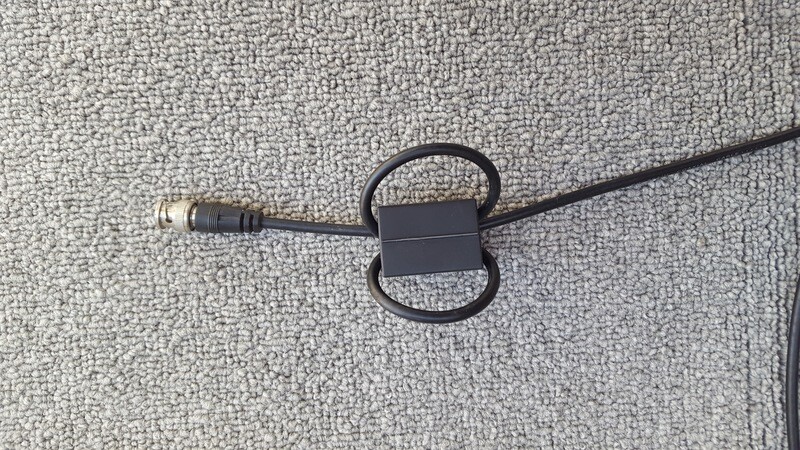

This transformer requires a feed line choke to isolate the coax feed line from the antenna. A coax noise filter is also recommended.
