This ferrrite Multi-Ring/Multi-Snap-On Combo Pack is a convenient solution for troubleshooting RFI/EMI (1-300 MHz) with various diameter cables ranging from 3/8" to 1.4"/35.6mm for use as either single turn or multiple turn RFI filters using ferrite rings and snap ons.
The filters are useful for RF coax, AC/DC power cables, and device interconnection cables.
Always use a snap on or ring with a larger inside diameter than the diameter of the cable and use multiple turns if possible (2 turns through the snap on is the same as 4 snap ons with 1 turn). Included in these combo packs are our most popular snap on sizes as follows:
Combo Pack includes the following:

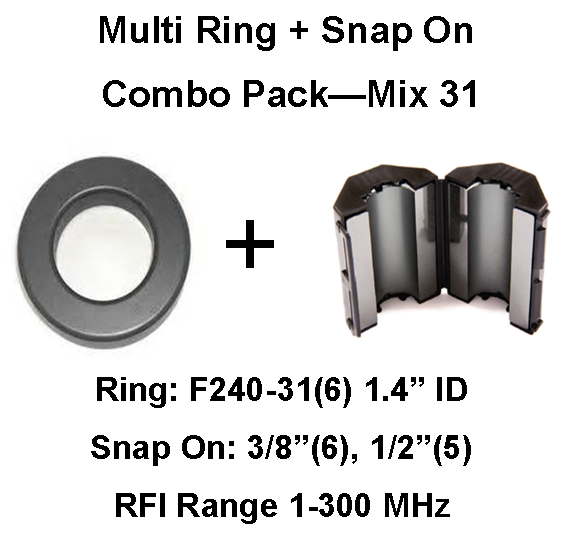

F240-31 ring – 1.4″/35.6mm ID – 6 pieces
FSB31-3/8 – 3/8″/9.5mm ID – 6 pieces
FSB31-1/2 – 1/2″/12.7mm ID – 5 pieces
Normal Retail price is $112 for these parts
We specify impedance ratios as an output to input ratio where the output (or load) is given first and the input is given second (e.g. 100:50 (2:1) would mean a 100 ohm output and a 50 ohm input; a 25:50 (1:2) would mean a 25 ohm load and a 50 ohm input). Most all products use a 50 ohm input unless otherwise specified.
We have products that are available as kits for the do-it-yourself (DIY) person or fully assembled and tested units for the “Plug & Play” crowd.
Our impedance transformers are available using two different topologies: Binocular cores or toroid cores with multiple turns for increased effectiveness and wide band frequency transformations. We utilize single and multiple core transformers using high order windings when needed to extend product performance.
We rate the power ratings as watts PEP (Peak Envelop Power) with standard duty cycles for various modes. To determine the PEP rating required for your needs, see: Choke & Transformer Power Ratings
This website page serves as a link page to the frequency ranges of our impedance transformers configured as either baluns or ununs. You can click on a picture to go to the specific page about the products described in the picture.
