5000 Watt PEP Rated 4:1 CUBE Baluns™
Th CB-4-5000 balun feature dual core ferrites configured as a current balun with a weather resistant enclosure box. Input is via SO-239 coax connector and output can be top studs or side eye hooks (2) and top eye hook used as a halyard hoist for supporting your wire antenna. Rated 5000 Watts PEP Watts from 1.8-31 MHz. Enclosure is 4″ x 4″ x 4″. Multi-core technology is excellent for high duty cycle modes like RTTY, Digital, AM, etc at 5KW PEP.

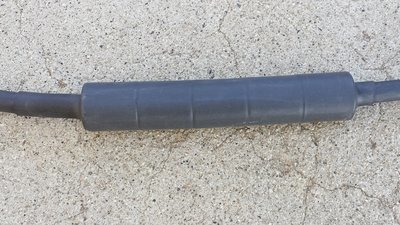

It is recommended that a feed line choke to isolate the coax feed line from the antenna. A coax noise filter is also recommended.
Need a 4:1 and 1:1 HYBRID balun? Check out our CB-4-1-1500/5000 with feedline choke built into same box as impedance transformer for ease of installation!
4:1 impedance transformers (Baluns and Unun configurations) are available in kit form or assembled form in a weatherproof Current Unun and Balun Enclosure which we call CUBE Baluns™ and CUBE Ununs™. All 4:1 impedance transformers use ferrite cores and the kit forms can be configured as a balun with balanced output of 200 ohms or as ununs with one side grounded.
4:1 baluns are designed for 50 ohm unbalanced (coax) input to 200 ohm output (either balanced or with one side grounded).
4:1 Baluns are useful between balanced lines for center fed Zepps, Off-center fed (OCF) dipoles with coax, G5RV antennas, full wave loops, NVIS dipoles that are close to ground and have impedance levels near 200 ohms or high impedance feeds for log periodic beams.
4:1 ununs are useful between coax and vertical antennas, monopole verticals or long wires with load impedances near 200 ohms.
