CUBE™ Vertical Antenna Feed Line Choke, 1.8-61 MHz, 1.5KWProduct DetailsUPC: Does not applyBrand: Palomar EngineersMPN: CUV-1-1500, CUV-1-5000Type: NewCountry/Region of Manufacture: United StatesEffective Frequency Range (MHz): 1-61 MHzPEP Power Rating (watts): 15005000Estimated Insertion Loss (db): .10Input Connector Type: SO-239 femaleOutput Connector Connector Type: 1/4" stud/wing nutGround Connector (Y/N): 1/4 stud/wing nutEnclosure Size (LxWxH inches): 4 x 4 x 2Feed Line Chokes for Vertical Antenna with radials/counterpoise
Feed line chokes for verticals require a special arrangement to isolate the coax feed line from the radials and ground system. Schematically, a good feed line choke for verticals with radials should be built as follows:
Our CUV-1-1500 and CUV-1-5000 feed line chokes are all internally connected to isolate the coax feed line as shown above.
1500 Watt Rated 1:1 Feed line Choke (Unun) for Verticals with radials

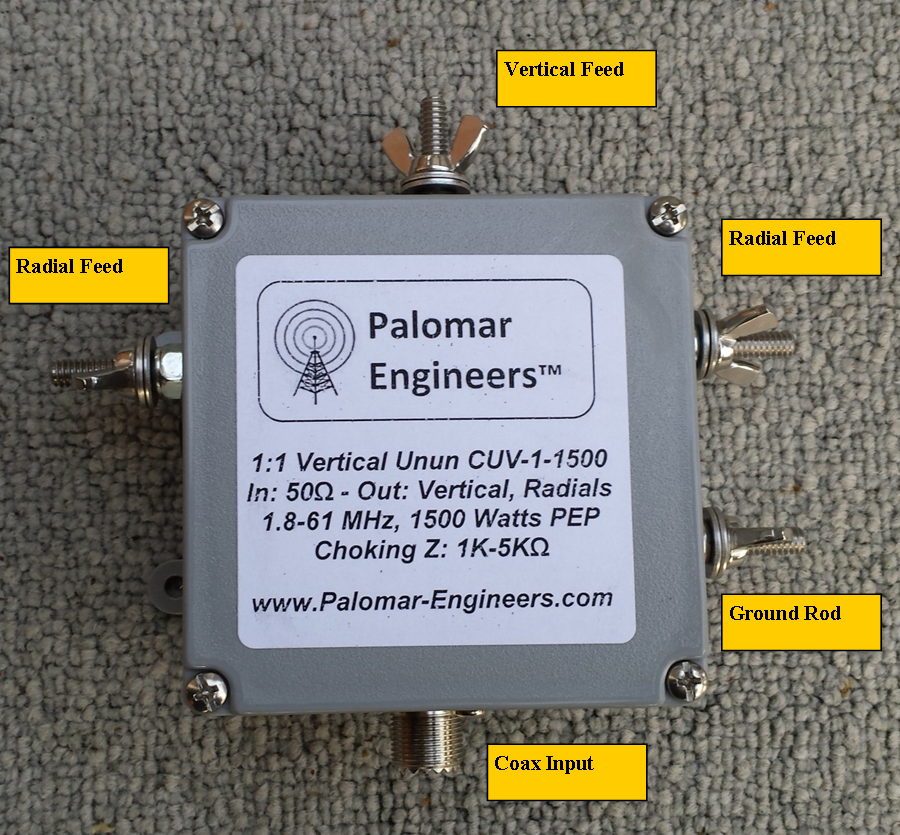

Th CUV-1-1500 unun is a common mode feed line choke for vertical antennas with radials that need to be isolated from the coaxial feed line to keep common mode current from using the coaxial braid as another radial. Very effective with high choking of 1K-5K from 1.8-61 MHz and also incorporates two side studs/wingnut terminals for radial or ground connection at the antenna while isolating the coax feed line braid from the radials via the internal common mode feed line choke. Top terminal with stud/wingnut for vertical connection enclosed in a 4″ x 4″ x 2″ box..
To reduce receiver common mode noise for long runs of coax to your antenna, use a MC-1-1500 or CU-1-1500 feed line choke at the station end of the coax.
On Sale
Ferrite Ring and Snap On Combo Pack - 10 Rings (1.4" ID) + 10 Snap On Beads (1/2" ID) - Mix 31 (RFI Range 1-300 MHz) FREE USA SHIPPINGFerrite Ring and Snap On Combo Pack - 10 Rings (1.4" ID) + 10 Snap On Beads (1/2" ID) - Mix 31 (RFI Range 1-300 MHz) FREE USA SHIPPINGSKU FRSCP-31-20List price $155.00 Save 10%$139.95HF 1-61 MHz coax feed line common mode chokes
Feed Line Chokes for Vertical Antenna with radials/counterpoise
Feed line chokes for verticals require a special arrangement to isolate the coax feed line from the radials and ground system. Schematically, a good feed line choke for verticals with radials should be built as follows:
Our CUV-1-1500 and CUV-1-5000 feed line chokes are all internally connected to isolate the coax feed line as shown above.
Th CUV-1-1500 unun is a common mode feed line choke for vertical antennas with radials that need to be isolated from the coaxial feed line to keep common mode current from using the coaxial braid as another radial. Very effective with high choking of 1K-5K from 1.8-61 MHz and also incorporates two side studs/wingnut terminals for radial or ground connection at the antenna while isolating the coax feed line braid from the radials via the internal common mode feed line choke. Top terminal with stud/wingnut for vertical connection enclosed in a 4″ x 4″ x 2″ box..
To reduce receiver common mode noise for long runs of coax to your antenna, use a MC-1-1500 or CU-1-1500 feed line choke at the station end of the coax.
1:1 feed line Chokes (also known as feed line current chokes, common mode chokes, line isolators, current mode chokes, and 1:1 baluns/ununs) are available in kit form or assembled form in a weatherproof Current Unun and Balun Enclosure which we call a CUBE™. All 1:1 chokes are ferrite based and are designed for 50 ohm coaxial cable input and 50 ohm output. 1:1 Ferrite toroidal or bead chokes have a higher choking impedance than our popular Sleeve Chokes and various models are available for specific frequency ranges and power levels.
1:1 Chokes are useful for choking common mode currents that may flow on the exterior of the coax cable shield while allowing the signals on the interior of the shield and the center conductor to flow unaffected and keeping the common mode current on the antenna. They isolate the coax shield and prevent it from becoming part of the antenna system.
1:1 Chokes are useful between balanced lines for center fed dipoles at their fundamental frequency (468/f (MHz), beam antennas with a 50 ohm balanced driven element, G5RV, loops, yagis, NVIS antennas, mobile installations, portable antennas and anywhere common mode current (or RFI) is a problem. They are also helpful between transmitter and linear amplifier or between linear amp and antenna tuner or as isolation chokes where higher choking impedance is needed (in the range of 2K-7K ohms).
1:1 Chokes are also very useful as feed line current chokes at the “radio end” of the antenna (we call them coax noise filters) where they choke/filter common mode current induced onto the coax shield from radiated waves (from your antenna, and other sources such as DSL routers, computer devices, plasma TVs, etc. originating in your house or your neighbor’s house). For RFI issues see RFI/EMI Solutions for general use or for specific radios and devices.
For best results we recommend a 1:1 choke at the “antenna end” of the coax and a coax noise filter at the “radio end” of the coax. (A side benefit is a reduction in noise level caused by common mode currents). 1:1 chokes are also available as Sleeve Chokes (Slip on or Snap on) for ease of installation and light weight on the antenna.
