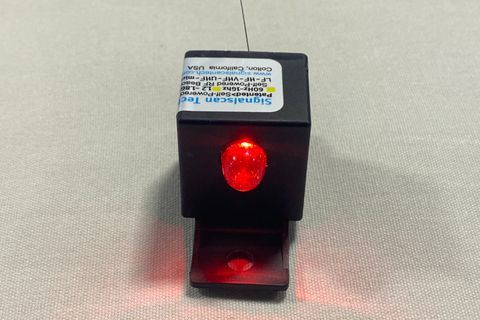

The smaller version of the Signalsquare, but functions the same. Encased in a protective case that can handle outdoor environments. A water proof device to detect RF signals without a battery. You can attach this to any base stations and uses RF as a power source to light up an indicating light.
Self-Powered RF Detection Light (No Battery Needed)
Product Dimensions
- Length: 1 in
- Width: 1 in
- Height: 1 in
Specifications
- Hz to GHz: 60 Hz to 1.2 GHz
- For Optional Models:
- 2.4 to 6 Ghz
- For Optional Models:
- Min. to Max. RF Powered Detection: Milliwatt to Kilowatts
- Proximity Detection:
- Wireless: 0.5 in to 3 ft
- Capable of in-circuit detection from 20 mW. 30 seconds at 100 W
Warranty
- 3 years warranty no matter what, except:
- Intentional breakage and tampering of device.
