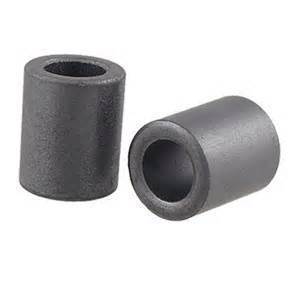

FB102-43 - 1/2" ID/12.8mm, RFI Range 25-300 MHz

FB102-43-1

FB102-43 - 1/2" ID/12.8mm, RFI Range 25-300 MHz FB102-43-1
$3.3 In stock
MPN:FB102-43
Initial Permeability::850
Material::NiZn
Max cable size - in/mm::.5/12.6
OD (A) - in/mm::1.02/25.9
ID (B) - in/mm::.505/12.8
Length (C) - in/mm::1.125/28.6
Z (ohms per bead - single turn 1 MHz)::15
Z (ohms per bead - single turn 5 MHz)::60
Z (ohms per bead - single turn 10 MHz)::91
Z (ohms per bead - single turn 25 MHz)::145
Z (ohms per bead - single turn 100 MHz)::235
Z ohms (per bead - single turn 250 MHz)::275
Case/Box lot size:212
FB102-43 - 1/2" ID/12.8mm, RFI Range 25-300 MHz
