UHF PL-259 Male Plug to SO-239 Female Right Angle 90 Degree RF Adapter Connector

Store/Antenna Products/CUBE Impedance Transformers (<1:1, 1:1, >1:1)/Enclosure Boxes and Hardware
SKU UHF-90
$6.95
Bulk pricing available for quantities of 10 units or more
1
Buy more, save more
QuantityPrice per itemDiscount
10 items$5.9514% off
Save this product for later
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in
Share this product with your friends
Pin it

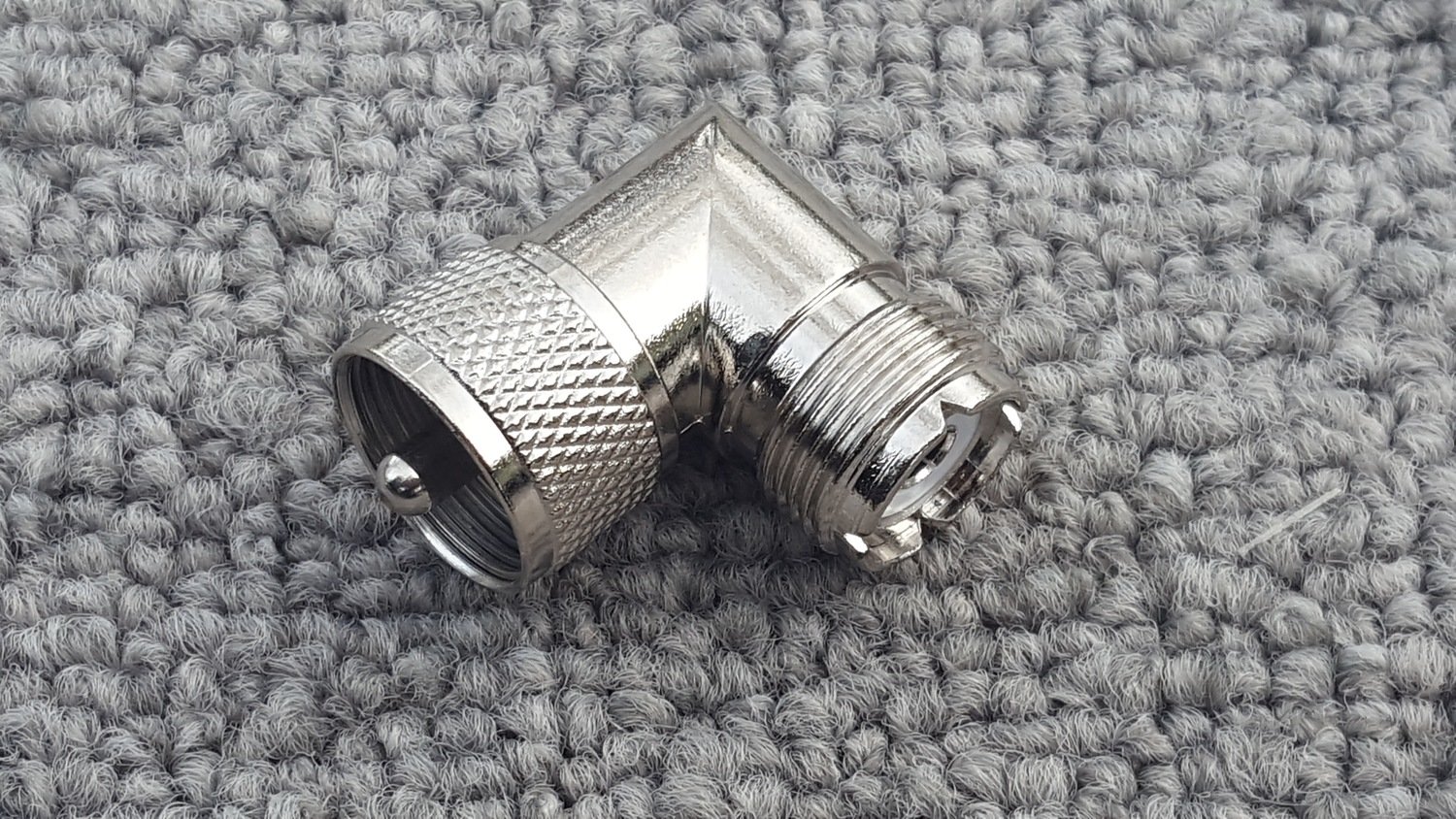

UHF PL-259 Male Plug to SO-239 Female Right Angle 90 Degree RF Adapter Connector
Store/Antenna Products/CUBE Impedance Transformers (<1:1, 1:1, >1:1)/Enclosure Boxes and Hardware
Product Details

UHF Right Angle Adapter

DESCRIPTION

  • Quantity: 1
  • End 1: UHF Female (SO-239)
  • End 2: UHF Male (PL-259)
  • Right Angle
Show More
Display prices in:USD
These impedance transformer kits have been designed for the Do-It-Yourself (DIY) enthusiast and Instructor workshops on baluns and ununs for antenna matching and RFI use.

The impedance transformers are classified in ratios of 2:1 (100:50 ohm) to 16:1 (800:50 ohm).  The outputs can be configured as balanced (Balun) or as unbalanced (unun) with respect to the inputs which are considered all unbalanced coax at 50 ohms.  All impedance transformers are designed for 1.8-31 MHz unless otherwise specified.
