Enclosure Box - 6" x 6" x 4"

Store/Antenna Products/CUBE Impedance Transformers (<1:1, 1:1, >1:1)/Enclosure Boxes and Hardware
SKU CB-Box-3
$27.95
1
Save this product for later
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in
Share this product with your friends
Pin it

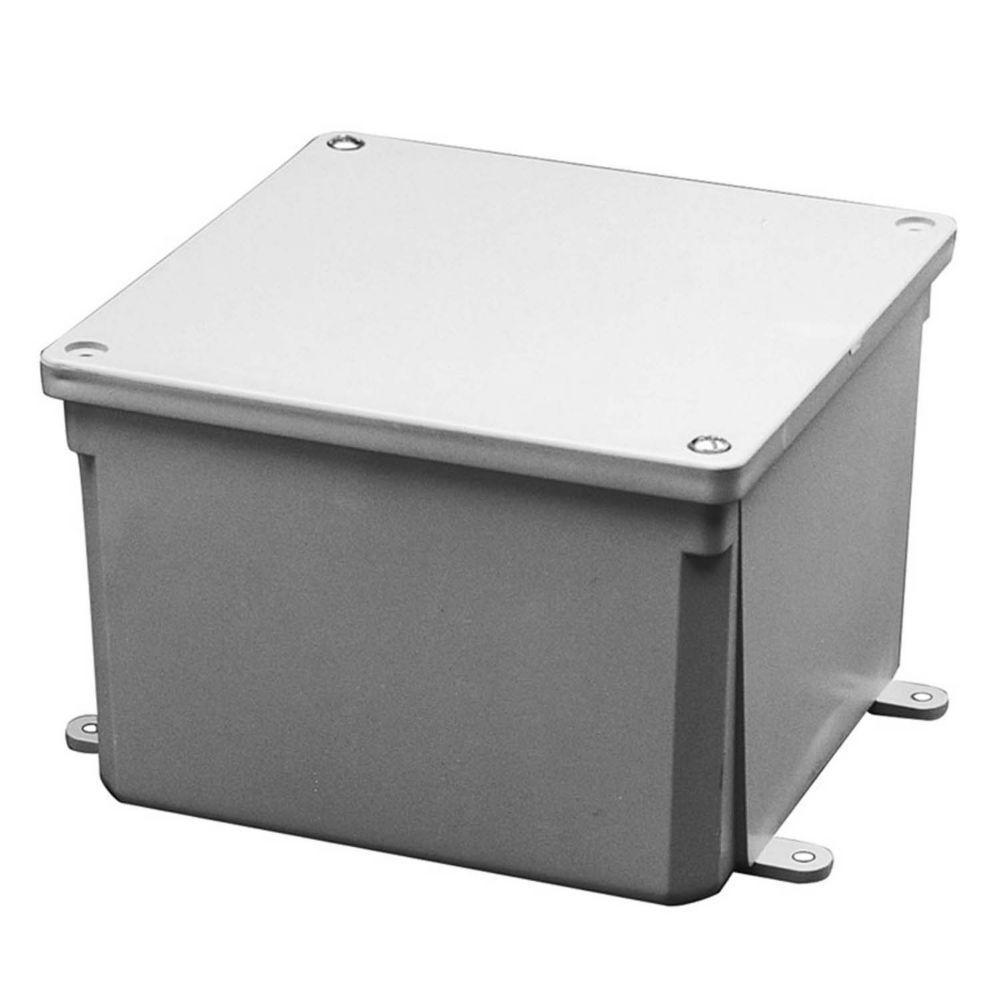

Enclosure Box - 6" x 6" x 4"
Store/Antenna Products/CUBE Impedance Transformers (<1:1, 1:1, >1:1)/Enclosure Boxes and Hardware
Product Details

Weather resistant PVC enclosure with top gasket, side feet for mounting to surface.

Show More
Display prices in:USD
These impedance transformer kits have been designed for the Do-It-Yourself (DIY) enthusiast and Instructor workshops on baluns and ununs for antenna matching and RFI use.

The impedance transformers are classified in ratios of 2:1 (100:50 ohm) to 16:1 (800:50 ohm).  The outputs can be configured as balanced (Balun) or as unbalanced (unun) with respect to the inputs which are considered all unbalanced coax at 50 ohms.  All impedance transformers are designed for 1.8-31 MHz unless otherwise specified.
