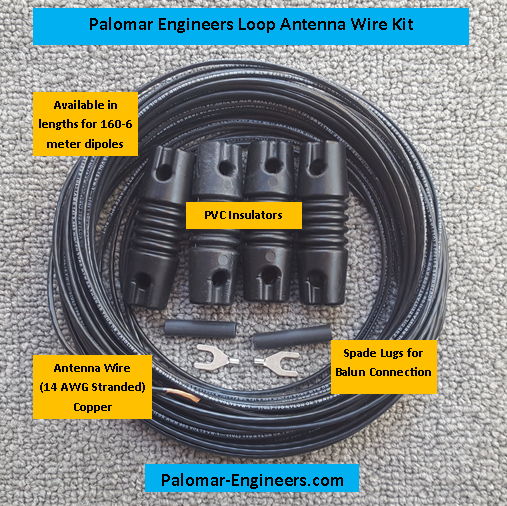

Full Wave Loop Antenna Wire Kit for vertical or horizontal loops (square, rectangle or delta shaped) from 160 meters to 10 meter. Includes end insulators, #14 Insulated stranded copper wire and spade lugs for attachment to an optional balun
Insulators are a very stealthy, strong, 4 PVC, 2 1/4" long. 1" wide. 1 1/8" hole separation wire antenna insulators and may be black, gray or white depending upon inventory.
Typical size id 1005/F(MHz) and cut for lowest frequency in band segment.

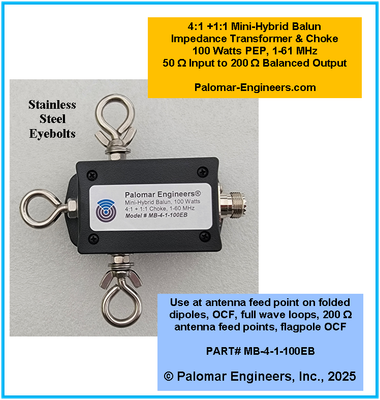

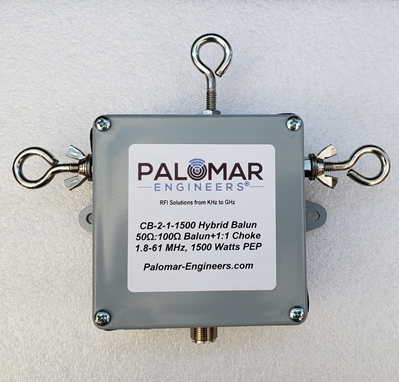

For multi-band capability use 4:1 balun such as our Bullet-4BEB-500/1500 or CB-4-1500EB/5000EB with a feed line choke below it or best bet is to use the Hybird 4:1 + 1:1 balun, CB-4-1-1500. For single band use a 2:1 balun such as a Bullet-2B-500/1500 or CB-2-1500/5000EB. with a feed line choke below it or the hybrid CB-2-1-1500EB with built in 2:1 and 1:1 balun.
To address separate solutions we have developed two separate RFI kits: one for HF (1.8-300 MHz) mobile installations and another for VHF/UHF (30-1000 MHz) mobile installations. Each kit uses the appropriate ferrite mix for the frequency range desired.
