Receiver Impedance/Isolation Transformers

For impedance transformation/isolation applications when max power is < 10 Watts PEP, this transformer provides a simple interface between transmission lines with different connectors or impedances or simply common mode isolation. DC continuity for bias-T applications.

MINI-BALUN 4:1 Coax Interface to Ladder Line, Loop, OCF antennas 500 Watts PEP, 1-61 MHz

SKU MB-4-500SS
$69.95
Bulk pricing available for quantities of 2 units or more
1
Buy more, save more
QuantityPrice per itemDiscount
2 items$64.957% off
10 items$59.9514% off
Save this product for later
Share this product with your friends
MINI-BALUN 4:1 Coax Interface to Ladder Line, Loop, OCF antennas 500 Watts PEP, 1-61 MHz
Product Details
Brand: Palomar Engineers
MPN: MB-4-500TS
Country/Region of Manufacture: United States
Effective Frequency Range (MHz): 1-60
PEP Power Rating (watts): 500 SSB (25% duty cycle), 250 Watts CW/FT8 (50% duty cycle)
Estimated Insertion Loss (db): .25 db
Input Connector Type: SO-239 female
Output Connector Connector Type: Dual 1/4" stainless steel studs
Enclosure Size (LxWxH inches): 3" long, 2 in wide, 1.25" high

MINI-BALUN Features:

- Uses proprietary Multi-Turn, Multi-Ferrite technology for maximum power transfer and minimum SWR

- 500 Watts PEP, 50 ohm SO-239 connectors In, Dual Side Stud Output, 1-61 MHz (usable to 100 MHz) - AKA 4:1 BALUN

- Works for coax fed antennas from 1.8-61 MHz (160-6 meters) - excellent for multi-band loops, OCF, G5RV/ZS6BKW or Flag Pole OCF antennas fed with ladder line.

- 2-5 times more wider bandwidth and higher power then competing baluns of similar power ratings

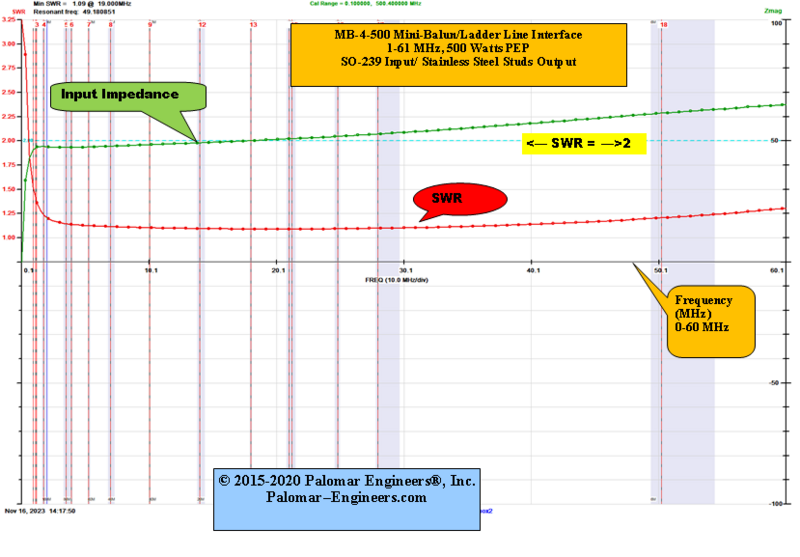

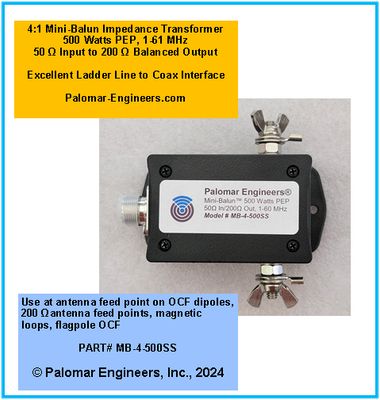

This balun has a SO-239 input and 1/4" side studs output.

For Higher Power needs use our CB-4-1500TS or CB-4-5000TS
