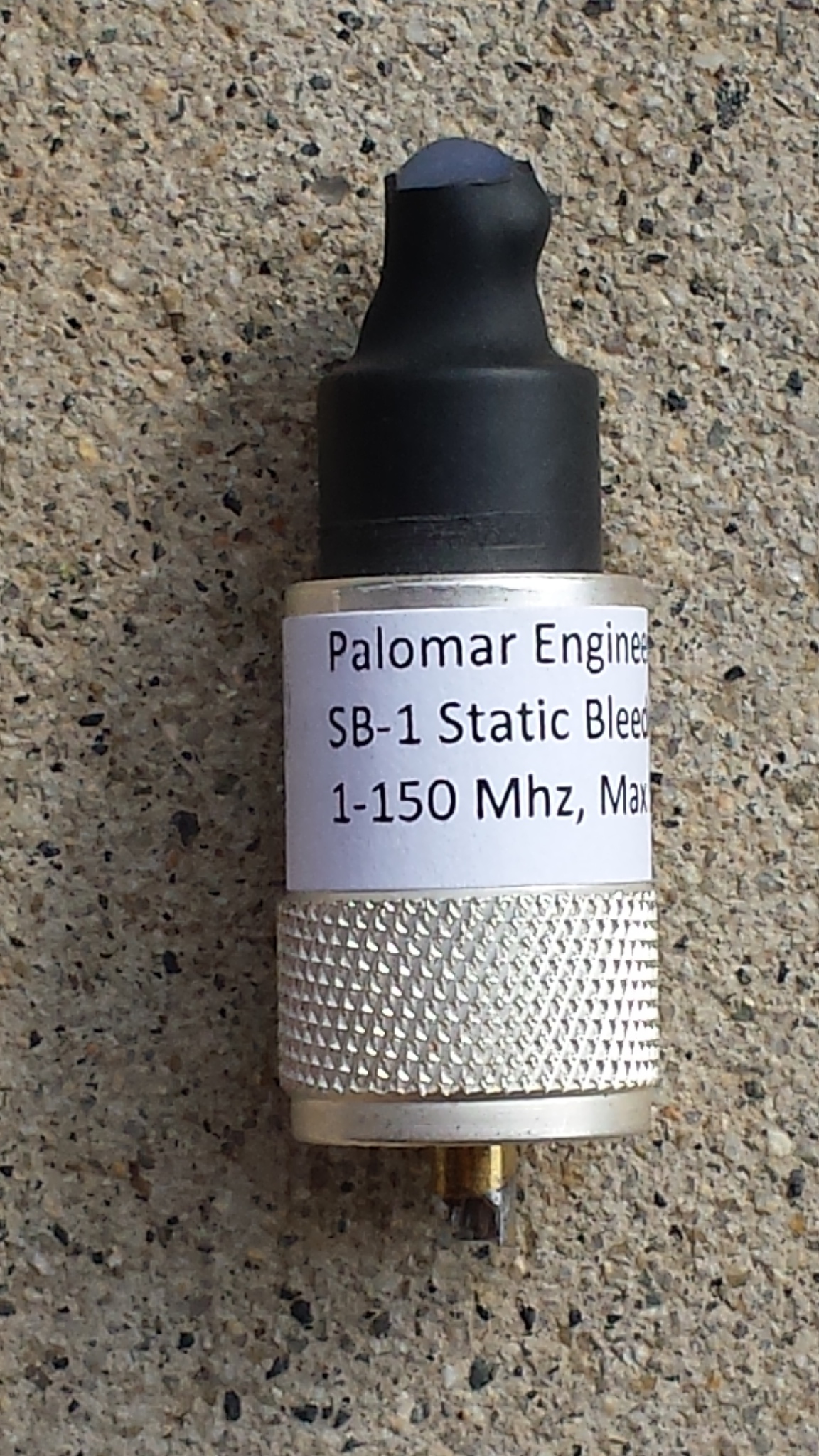

Model SB-1 is a static bleeder meant for 50 or 75 ohm coax line. It is rated from 1-150 Mhz at 1.5KW with a maximum SWR of 5:1 on the line. The bleeder is used on a coax “T” in line with the coax transmission line as shown in the picture below.

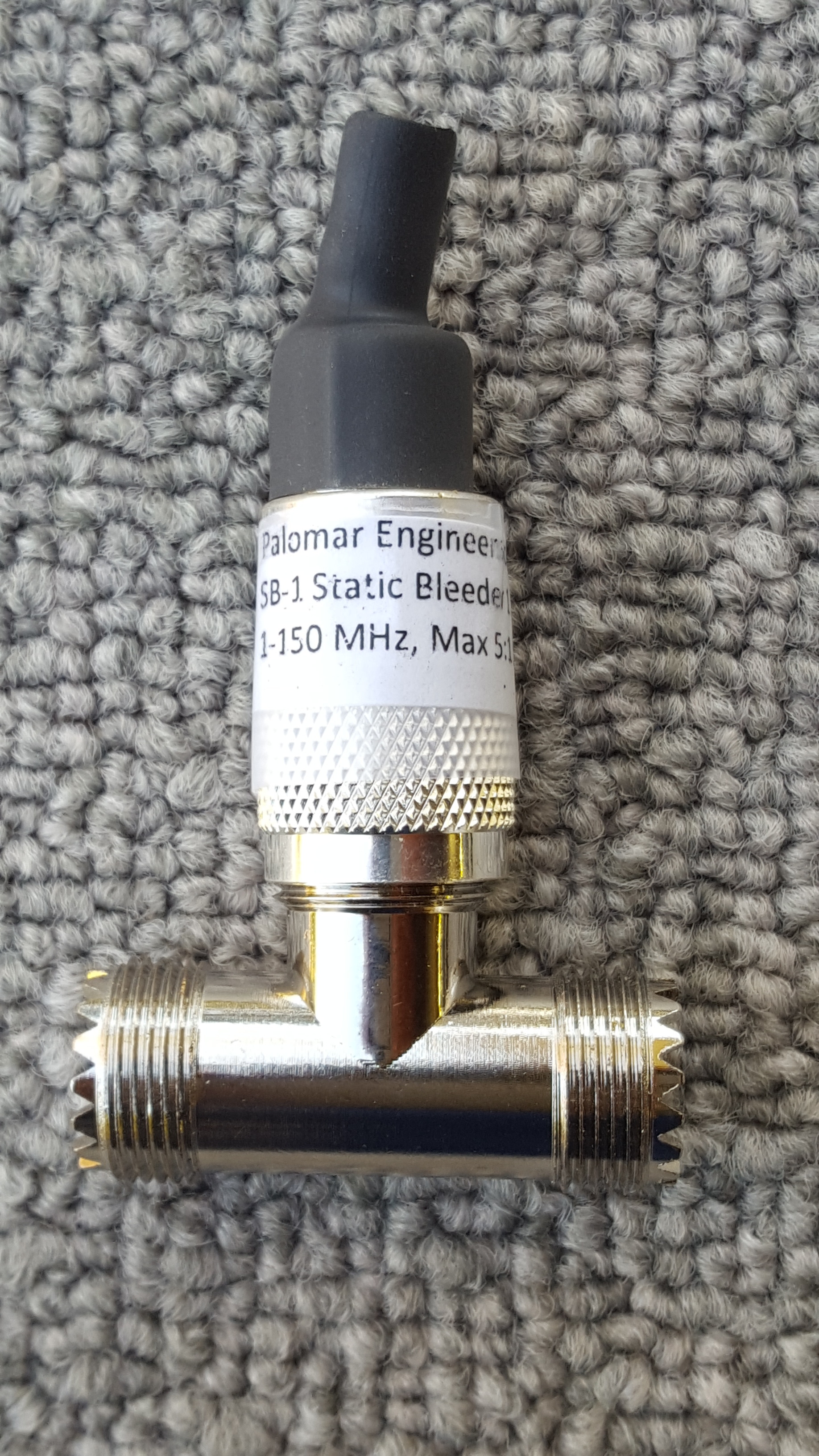

SB-1 Coax Static Bleeder installed on coax “T” connector
To use procure a coax “T” and a male to male connector. Connect the SB-1 to the male to male connector and thence to the coax “T”. Static voltages are bled off from the center conductor to the outside conductor (braid of the coax). At the entrance to your radio station ensure that the outside conductor of the coax transmission line is grounded so as to provide a sink for the static electricity on the antenna center conductor.
The SB-1 static bleeder is usually installed near the radio shack entrance on the antenna side of any 1:1 baluns/line isolators (between isolator and radio) if used.
the connector is a male PL-259 and will fit into a SO-239 (female) or "T" with female counterpart to the PL-259. Small, convenient, effective and easy to install! "T" connector shown in picture NOT included.
Due to many requests for antenna static bleeders, we have developed a product line of static bleeders for coax and for ladder line applications. Static electricity is caused by many situations including high desert wind, atmospheric conditions, etc. You may hear static crashes or have a buildup of static electricity that my be annoying during a radio conversation and it may be harmful to solid state electronics if high voltages are present on the RF input to your equipment.
A static “Bleeder” which shorts the direct static voltage to ground while leaving the RF frequency voltage unaffected if very beneficial particularly to those operations in desert conditions where low humidity, high static buildup are quite common. The SB-1 and SB-2 coax static bleeders work on coax line and the SB-3 static bleeder is meant for ladder line.
THESE DEVICES ARE NOT FOR LIGHTNING PROTECTION AND PROVIDES NO PROTECTION FOR LIGHTNING STRIKES!!!!!
Model SB-1 is a static bleeder meant for 50 or 75 ohm coax line. It is rated from 1-150 Mhz at 1.5KW with a maximum SWR of 5:1 on the line. The bleeder is used on a coax “T” in line with the coax transmission line as shown in the picture below.
SB-1 Coax Static Bleeder installed on coax “T” connector
To use procure a coax “T” and a male to male connector. Connect the SB-1 to the male to male connector and thence to the coax “T”. Static voltages are bled off from the center conductor to the outside conductor (braid of the coax). At the entrance to your radio station ensure that the outside conductor of the coax transmission line is grounded so as to provide a sink for the static electricity on the antenna center conductor.
The SB-1 static bleeder is usually installed near the radio shack entrance on the antenna side of any 1:1 baluns/line isolators (between isolator and radio) if used.
the connector is a male PL-259 and will fit into a SO-239 (female) or "T" with female counterpart to the PL-259. Small, convenient, effective and easy to install! "T" connector shown in picture NOT included.
