FSB75-3/8, ID=3/8", RFI Range 150Khz-10 MHz
FSB75-3/8-1
$11.25
In stock
1
Product Details
Initial Permeability (@ 10KHz):
5000
Material:
MnZn
Max cable size - in/mm:
.388/9.85
OD (A) - in/mm:
.906/23
ID (B) - in/mm:
.4/10.15
Length (C) - in/mm:
1.55/39.4
Z (ohms per bead - single turn 200 KHz):
18
Z (ohms per bead - single turn 500 KHz):
46
Z (ohms per bead - single turn 1 MHz):
92
Z (ohms per bead - single turn 2 MHz):
115
Z (ohms per bead - single turn 5 MHz):
74

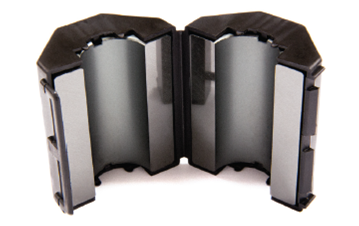

Ferrite Snap On, ID = .40 in/10.15mm, Mix 75
