FSB75-1/4, ID=1/4", RFI Range 150Khz-10 MHz
Product Details
Country/Region of Manufacture: USA
Initial Permeability (@ 10KHz): 5000
Material: MnZn
Max cable size - in/mm: .25/6.3
OD (A) - in/mm: 1.22/14.3
ID (B) - in/mm: .26/6.6
Length (C) - in/mm: 1.55/3.94
Z (ohms per bead - single turn 200 KHz): 19
Z (ohms per bead - single turn 500 KHz): 49
Z (ohms per bead - single turn 1 MHz): 102
Z (ohms per bead - single turn 2 MHz): 172
Z (ohms per bead - single turn 5 MHz): 110

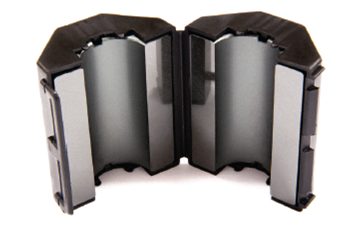

Ferrite Snap On, ID = .26 in/6.6mm, Mix 75

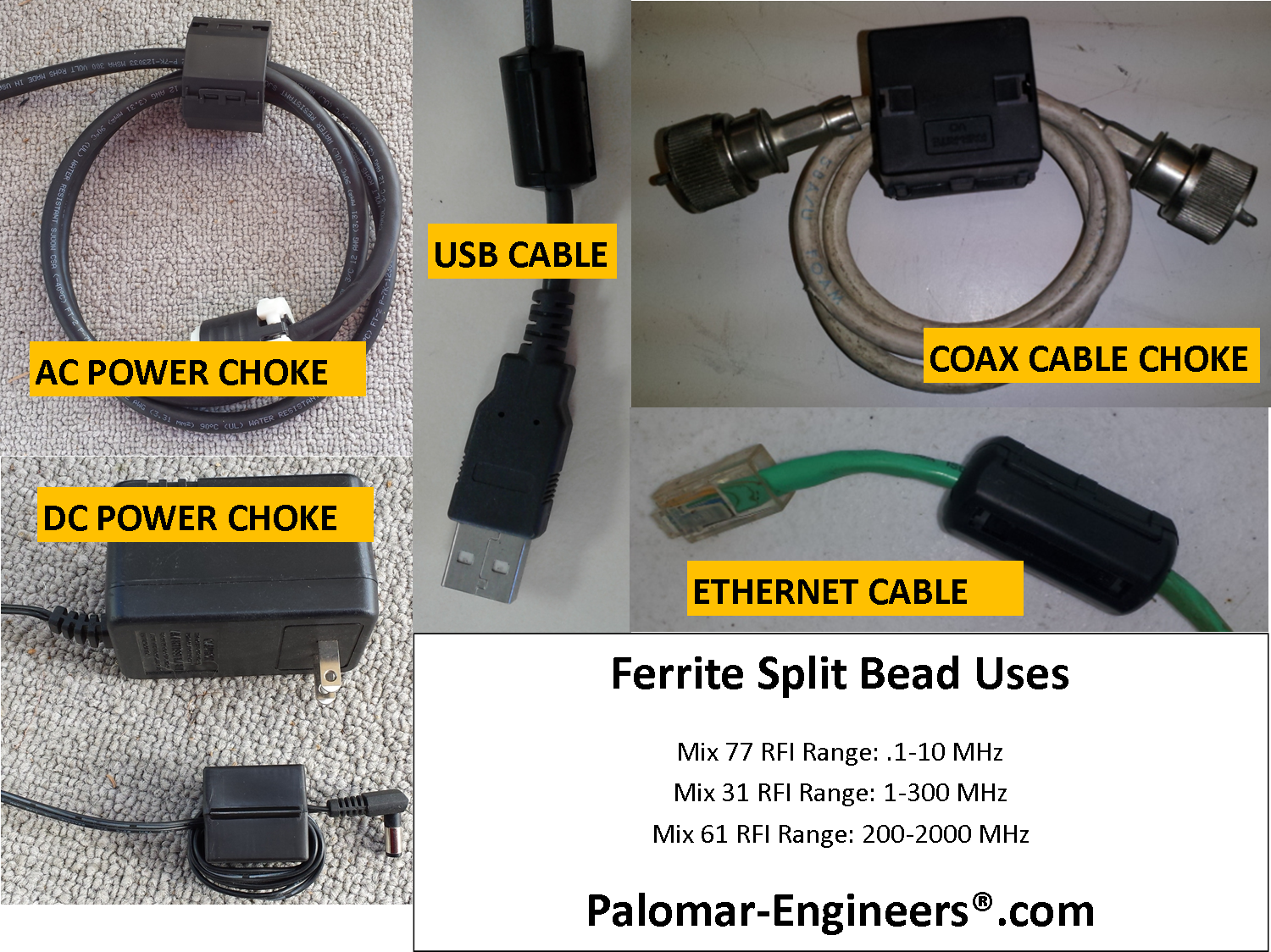

Excellent for AC/DC power cables on switching power supplies and data/audio/video cables for AM broadcast RFI suppression.
