FSB61-3/4, ID=3/4", RFI Range 200-2000 MHz

FSB61-3/4

FSB61-3/4, ID=3/4", RFI Range 200-2000 MHz FSB61-3/4

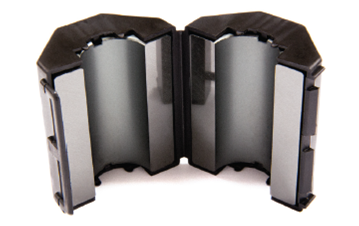

Ferrite Snap On, ID = .74 in/18.8 mm, Mix 61

$12.95 In stock
Initial Permeability::125
Material::NiZn
Max cable size - in/mm::.709/18
OD (A) - in/mm::1.52/38.6
ID (B) - in/mm::.722/18.35
Length (C) - in/mm::1.87/47.5
Z (ohms per bead - single turn 100 MHz)::360
Z ohms (per bead - single turn 250 MHz)::480
Z (ohms per bead - single turn 500 MHz)::350
Z (ohms per bead - single turn 1000 MHz)::110
FSB61-3/4, ID=3/4", RFI Range 200-2000 MHz
