Elecraft KPA1500 HF Linear Amplifier RFI Kit - 15 Filters for RF In/Out, AC Power, PA KEY, Computer Control/AUX/RS232
RFI-ELECRAFT-KPA1500
In stock
1
Product Details
MPN:
RFI-ELECRAFT-KPA1500
Type:
New
Country/Region of Manufacture:
United States
Filter Power Rating (PEP watts):
coax cable limit
RFI Suppression Range (MHz):
1-300 MHz
# Ferrite Filters:
15
Typical Use::
AC power, RF In/out, I/O control cables
KPA1500
This RFI Kit Includes are the following filters and installation guidelines:
RF Input:F240 ring – 5-9 turns of RG-58/8X size through center
RF Output:# 1 - FSB31-1 (Big Clamp on) – 3 turns of RG-8 size cable
RF Output:# 2 - FSB31-1 (Big Clamp on) – 3 turns of RG-8 size cable
PA KEY Cable: - FSB31-1/2 – multiple turns through choke – ½” diameter hole
DC Power Line: - FSB31-1 (Big Clamp on) – 2 turns through center
AC Line of DC Power Supply: - FSB31-1 (Big Clamp on) – 3 turns through center

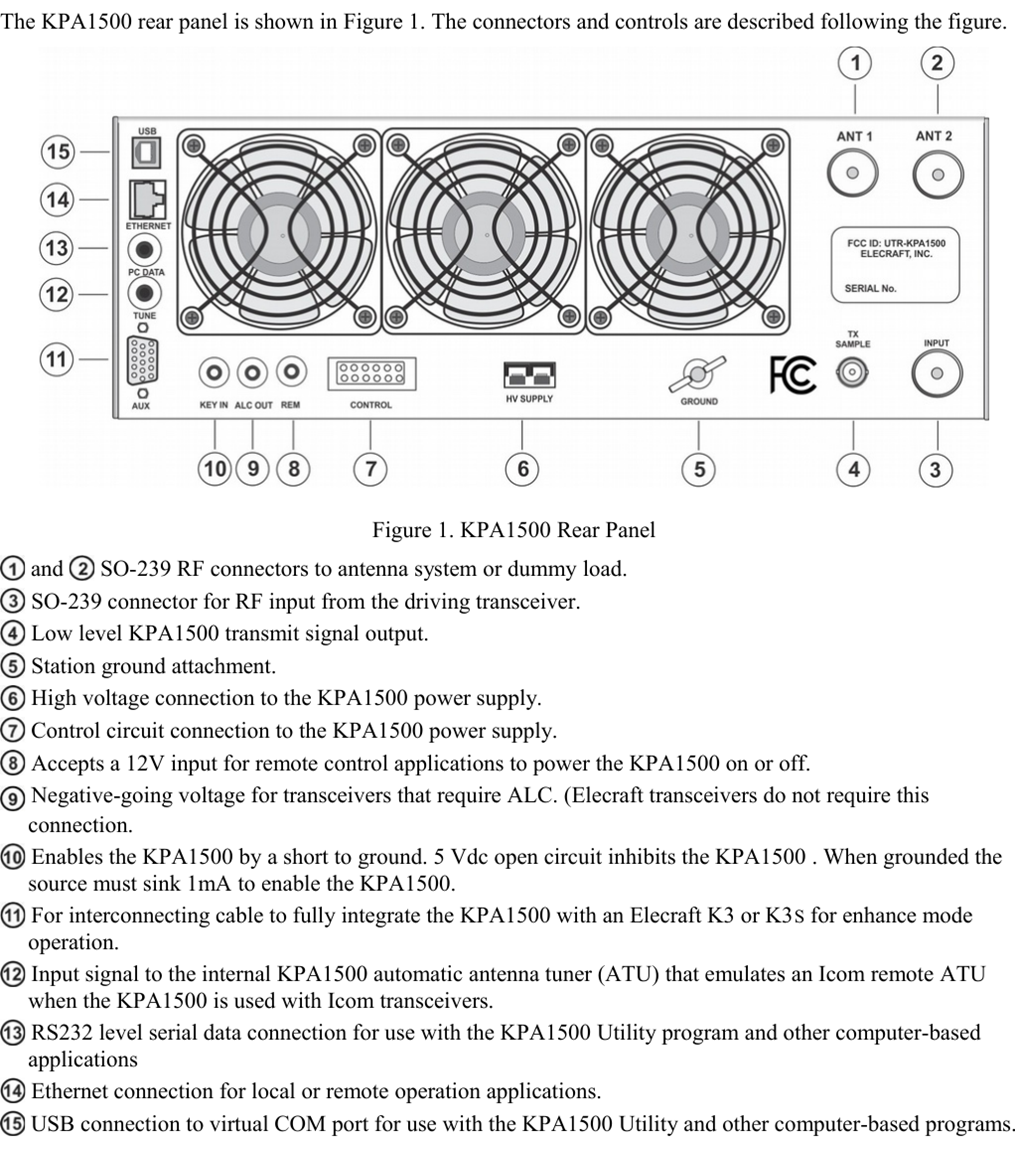

Ports 7 to 15 : - FSB31-1/2 – multiple turns through choke – ½” diameter hole
Total ferrites: - F240 rings (1), FSB31-1 (4), FSB31-1/2 (10)
Also make sure you connect a good RF ground to the amplifier ground post.
