FB56-31 - 1/4" ID, RFI Range 1-300 MHz
Product Details
Initial Permeability (@ 10KHz): 1500
Material: MnZn
Max cable size - in/mm: .25/6.3
OD (A) - in/mm: .562/14/3
ID (B) - in/mm: .25/6.4
Length (C) - in/mm: 1.125/28.6
Z (ohms per bead - single turn 1 MHz): 35
Z (ohms per bead - single turn 5 MHz): 91
Z (ohms per bead - single turn 10 MHz): 119
Z (ohms per bead - single turn 25 MHz): 181
Z (ohms per bead - single turn 100 MHz): 300
Z ohms (per bead - single turn 250 MHz): 280

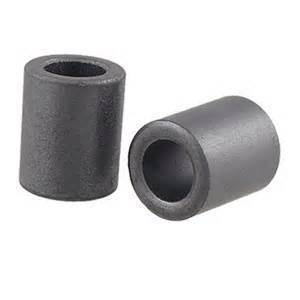

Ferrite Slip On Bead - ID = .25 in/6.4mm - Mix 31
