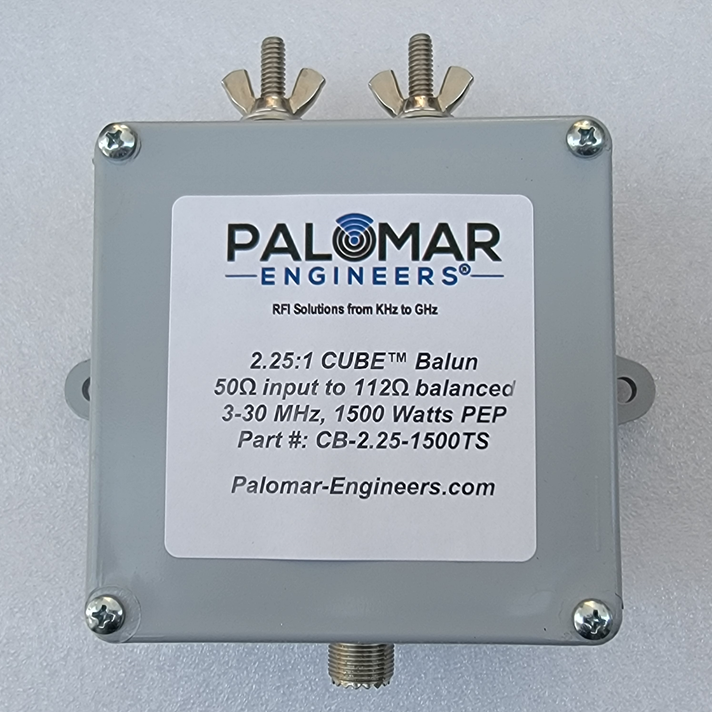

50:112 (2.25:1) CUBE™ Balun 3-30 MHz, 1.5KW/3KW/5KW

In stock
Product Details
Country/Region of Manufacture: USA
Input ohms/Output ohms: 50
Frequency Range < 2:1 SWR (MHz): 3-30
PEP Power Rating (watts): 1500/3000/5000
Enclosure Size: 4" x 4" x 2" (1.5KW), 4" x 4" x 4" (3KW/5KW)
Weight (pounds): 3
Antenna Compatability: loops, quads, 112 ohm input antennas

High Power rated at 1.5KW/3KW/5KW (option) PEP (FT8 mode at 1.5KW)

Broad frequency range of 3-30 MHz for < 2:1 SWR into matched load

Compact 4" x 4" x 2" (1.5KW) or 4" x 4" x 4" (3KW/5KW) light weight weatherproof enclosure

Quick, easy deployment with either halyard hoist and side eyebolts or to stud outputs (all 1/4" stainless hardware)

Choice of BALUN (balanced outputs) or UNUN (unbalanced output and ground)

Model CB-2.25-1500, 3000, 5000 is a 2.25:1 (112:50 ohm) multi-core balun used to translate a 50 ohm input to 112 ohms at RF power levels up to 5000 watts PEP when used with a matched load such as single band delta loop, quad or loop skywire. This assembled balun features a multi-core configuration for increased power handling and flatter frequency response to over 30 MHz. With a matched 112 ohm load the SWR over the frequency range is very consistent from 3-30 MHz and SWR is less than 2:1 over the range allowing easy tuning by most radio internal antenna tuners or an external tuner.
