Loop Antenna Matcher ( 2:1) CUBE™ Balun (1.8-60 MHz), 2KW, Delta, Quad, Horizontal

AM-2-2000EB

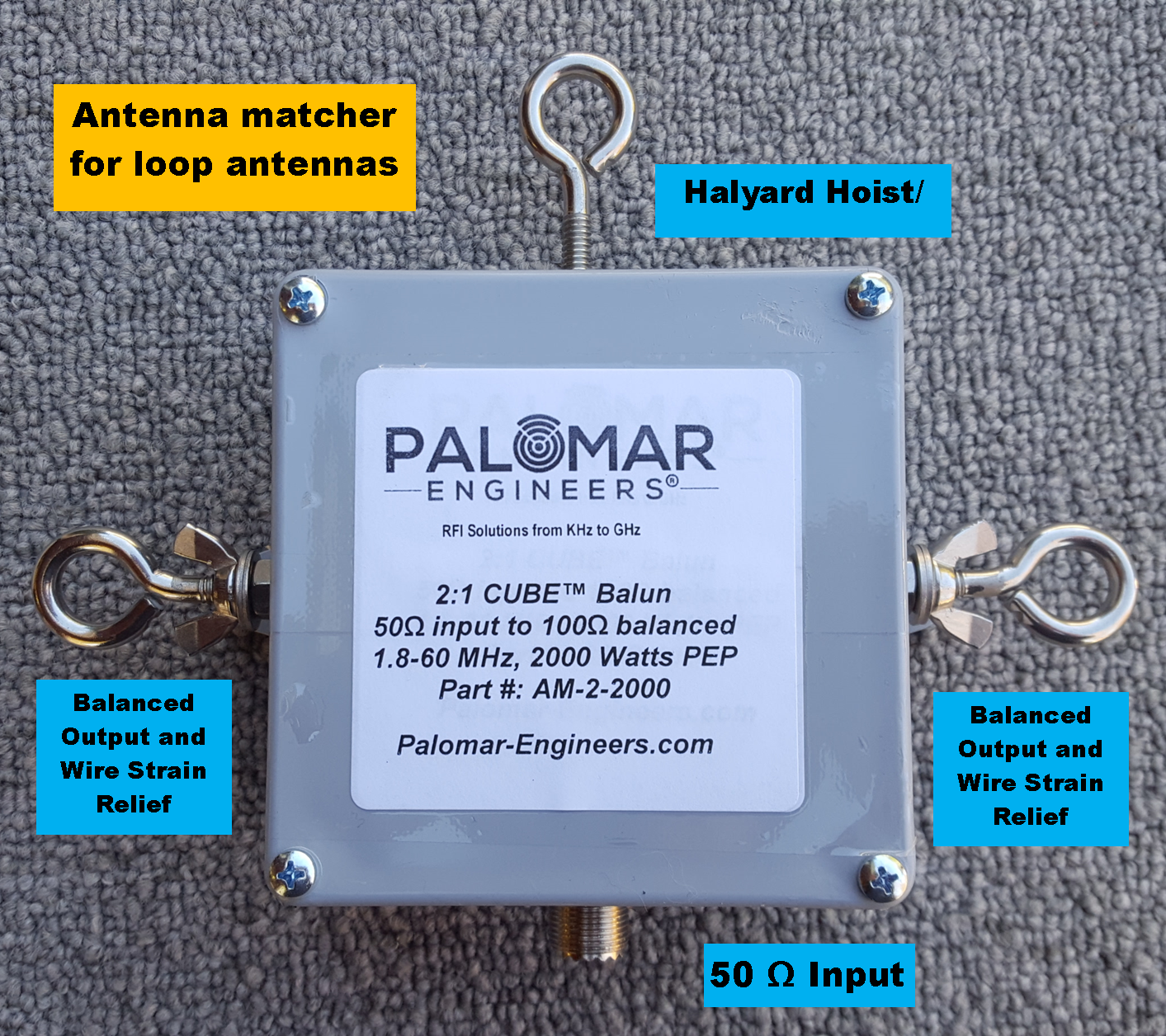

Loop Antenna Matcher ( 2:1) CUBE™ Balun  (1.8-60 MHz), 2KW, Delta, Quad, Horizontal AM-2-2000EB

High Power rated at 2KW PEP (FT8 mode at 1.5KW)

Broad frequency range of 1.8-61 MHz for < 2:1 SWR into matched load

Compact 4" x 4" x 2" light weight weatherproof enclosure

Quick, easy deployment with either halyard hoist or side mounting tabs

Choice of BALUN (balanced outputs) or UNUN (unbalanced output and ground)

Model AM-2-2000 is a 2:1 (100:50) quad core balun used to translate a 50 ohm input to 100 ohms at RF power levels up to 2000 watts PEP when used with a matched load such as a delta loop, quad or loop skywire. This assembled balun features a quad core configuration for increased power handling and flatter frequency response to over 60 MHz. With a matched 100 ohm load the SWR over the frequency range is very consistent from 1.8-61 MHz and SWR is less than 2:1 over the range allowing easy tuning by most radio internal antenna tuners or an external tuner.

$89.95 In stock
UPC:Does not apply
Brand:Palomar Enginers
MPN:AM-2-2000
Frequency Band(s):160-6 meters
Country/Region of Manufacture:USA
Type:BALUN
Input ohms/Output ohms:50/100
Frequency Range
PEP Power Rating (watts):2000
Loop Antenna Matcher ( 2:1) CUBE™ Balun  (1.8-60 MHz), 2KW, Delta, Quad, Horizontal
