FSB75-1/2, ID=1/2", RFI Range 150Khz-10 MHz, Bulk Pack of 10

FSB75-1/2-10

FSB75-1/2, ID=1/2", RFI Range 150Khz-10 MHz, Bulk Pack of 10 FSB75-1/2-10

Ferrite Snap On, ID = .514in/13.1 mm, Mix 75, Bulk pack of 10

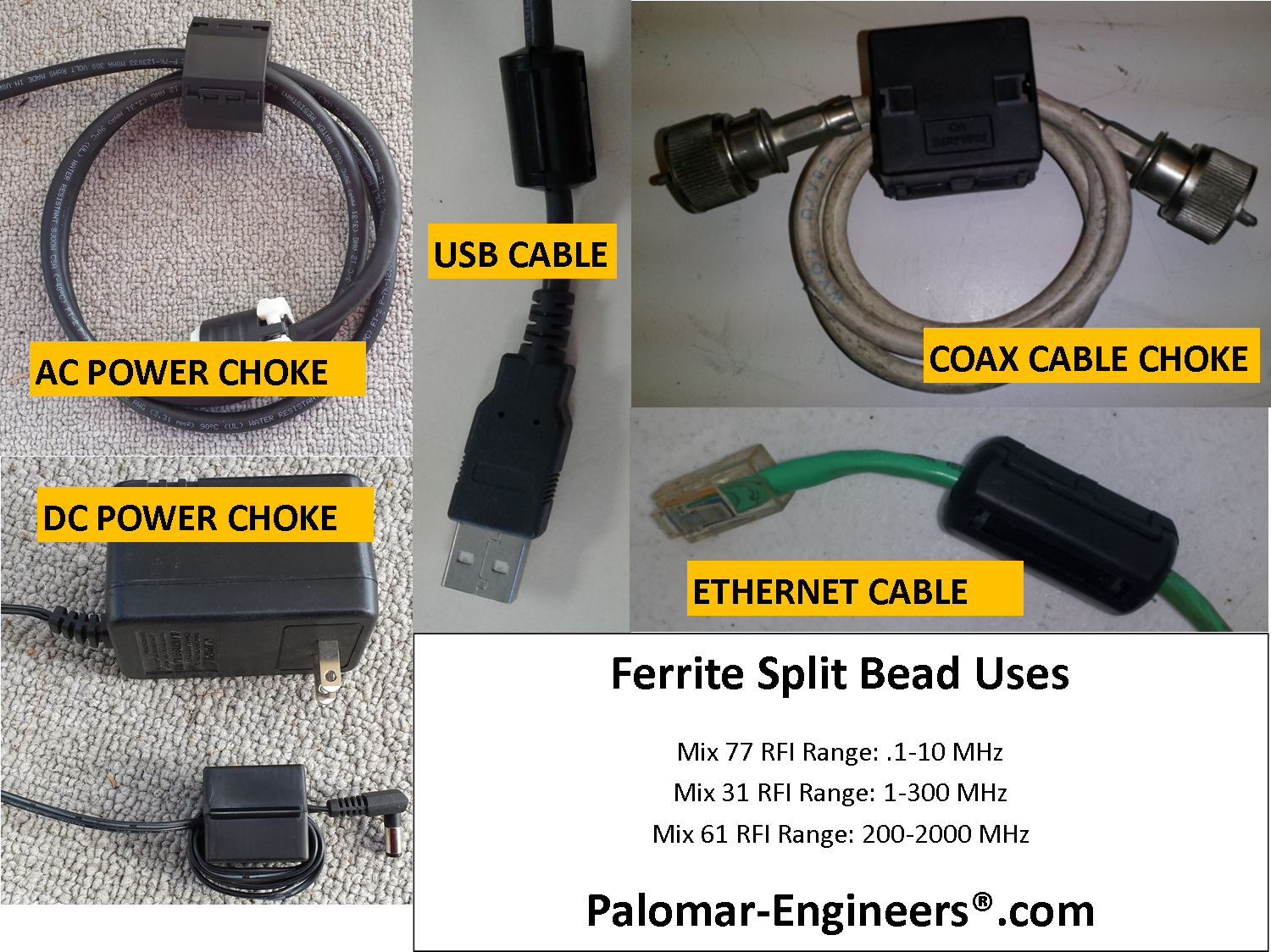

Excellent for AC/DC power cables on switching power supplies and data/audio/video cables for AM broadcast RFI suppression.

$114.95 In stock
Initial Permeability (@ 10KHz):5000
Material:MnZn
Max cable size - in/mm:.5/12.7
OD (A) - in/mm:1.14/29
ID (B) - in/mm:.514/13.1
Length (C) - in/mm:1.14/29
Z (ohms per bead - single turn 200 KHz):20
Z (ohms per bead - single turn 500 KHz):58
Z (ohms per bead - single turn 1 MHz):102
Z (ohms per bead - single turn 2 MHz):70
Z (ohms per bead - single turn 5 MHz):50
:10
:16.5
FSB75-1/2, ID=1/2", RFI Range 150Khz-10 MHz, Bulk Pack of 10
