FSB31-1, ID=1", RFI Range 1-300 MHz, Bulk Pack of 3

FSB31-1-3

FSB31-1, ID=1", RFI Range 1-300 MHz, Bulk Pack of 3 FSB31-1-3

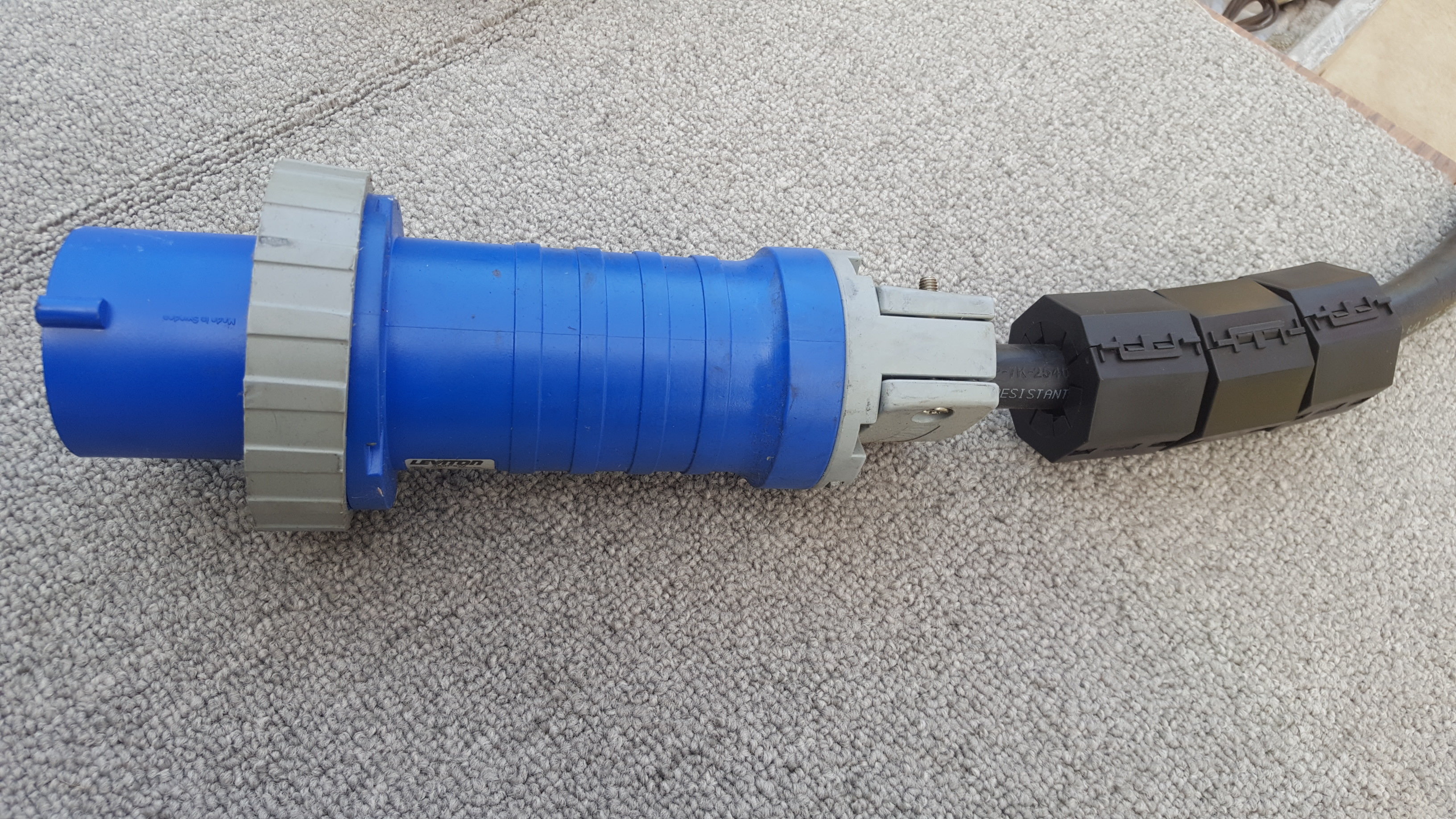

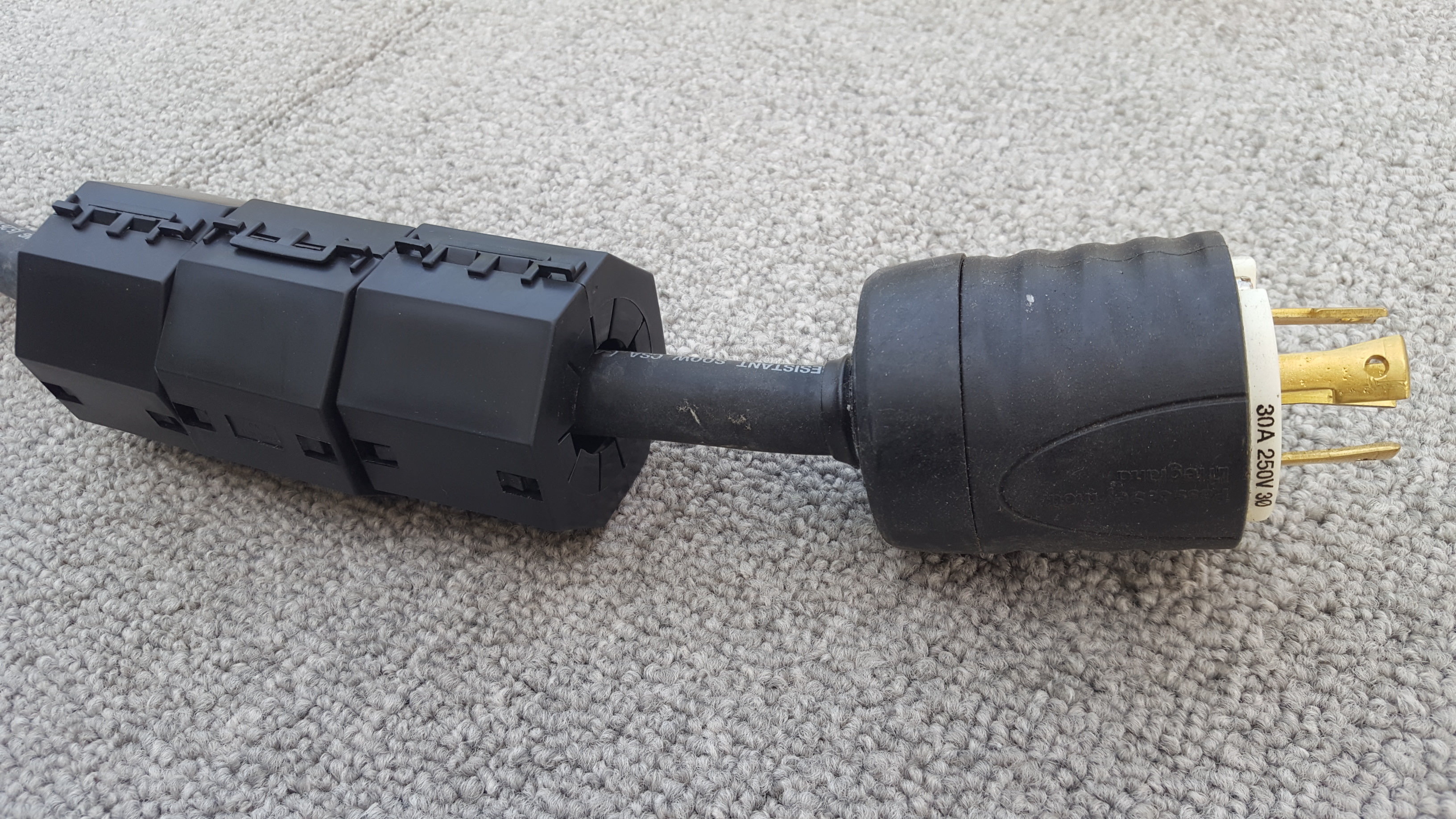

Also known as Big Clamp On. Very useful for AC/DC power, coax cable, etc. Use multiple turns for best results or multiple chokes in series (recommended for large amperage power cables). Always put +/- dc cables through the same ferrite filter so their fields cancel and the ferrite suppresses the common mode current on each cable.. Bulk pack of 3

$49.95 In stock
MPN:FSB31-1
Initial Permeability (@ 10KHz):1500
Material:MnZn
Max cable size - in/mm:1.0/25.4
OD (A) - in/mm:2.22/56.4
ID (B) - in/mm:1.02/25.9
Length (C) - in/mm:1.69/41.9
Z (ohms per bead - single turn 1 MHz):45
Z (ohms per bead - single turn 5 MHz):90
Z (ohms per bead - single turn 10 MHz):125
Z (ohms per bead - single turn 25 MHz):218
Z (ohms per bead - single turn 100 MHz):375
Z ohms (per bead - single turn 250 MHz):340
Case/Box lot size:36
:18.32
:3
