Flex Radio 6500/6600/6700 Transceiver RFI Kit, RFI Range 1-60 Mz, 12 Filters
Flex Radio 6000 series RFI kit is designed to be installed on your radio transceiver to reduce Radio Frequency Interference (RFI) caused by common mode current on the coax output (2) of your radio, the AC/DC power cable, mic input, USB transverter RX/TX, speaker, ethernet I/O, and flex wire I/O, and ALC/PTT.
This kit will help reduce or eliminate:
1. “Hot mic” RFI caused by poor grounding of antennas or common mode currents from linear amps feeding unbalanced (coax fed) antennas without baluns/line isolators.
2. RFI to neighbor’s electronic devices including audio/video systems, computers, telephones, garage door openers, etc.
3. RFI to your other radios, audio/video systems, computers, telephones, etc.
A side benefit is a reduction in
noise floor in your receiver depending on the amount of noise being
introduced by common mode currents (which are blocked/reduced by the
chokes in this kit).
These chokes use a special mix of ferrite core material that is effective in suppressing radio frequency interference from transmitters and high noise floor on receivers.
The split beads beads are easy to use, don’t require modification of the protected equipment and work in almost all cases, even when plug-in filters fail.
Use of the chokes often helps cure SWR problems between transceiver and a linear amp and between transceiver and antenna tuner or direct to antenna. The DC power line choke helps keep common mode current out of the power line which could cause interference to other devices connected to the same power line if not suppressed.
This kit includes 5 ring filters (ID=1.4") and 7 1/2" ID split beads and installation instructions.
If you use a linear amplifier use an amplifier RFI kit for additional RFI interference suppression.
Also make sure you connect a good RF ground to the transceiver ground post.

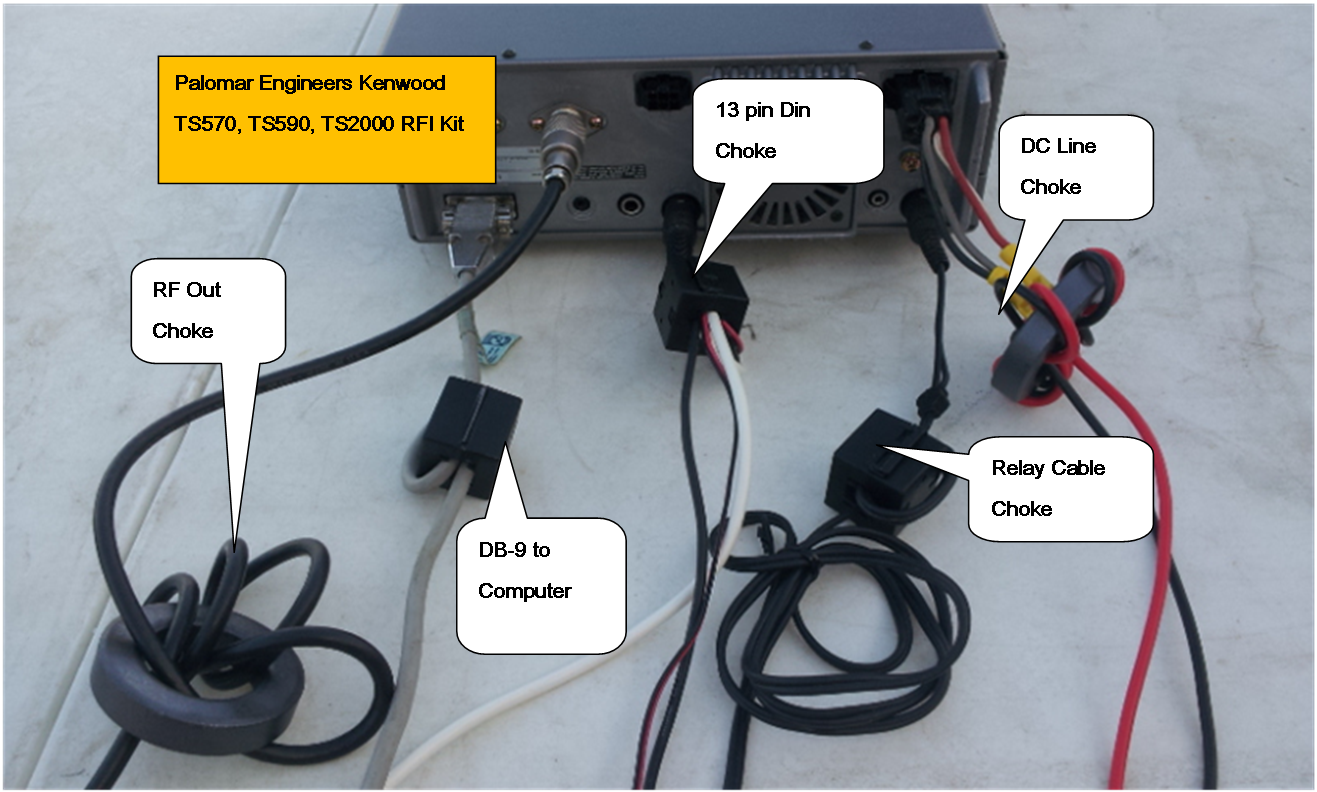

Note to Flex Radio users: Use snap on ferrites for firewire cable, speaker cable and mic cable, Ring ferrites for Antenna output and DC power.
For additional RFI suppression, use a feed line choke at the antenna to suppress common current on the coax feed line – see our store for feed line choke alternatives for use at the antenna.
If you use a linear amplifier we have RFI kits for linear amplifiers that help suppress RFI in your shack or in your neighbor’s house.
