HF Linear Amplifier Deluxe RFI Kit - 12 Filters for RF In/Out, AC power, Relay/PTT, CIV
RFI-LA-DELUXE

All coax I/O and control lines and AC/DC power line for high end amplifiers with multiple RF inputs and outputs, control/keying/frequency I/O.

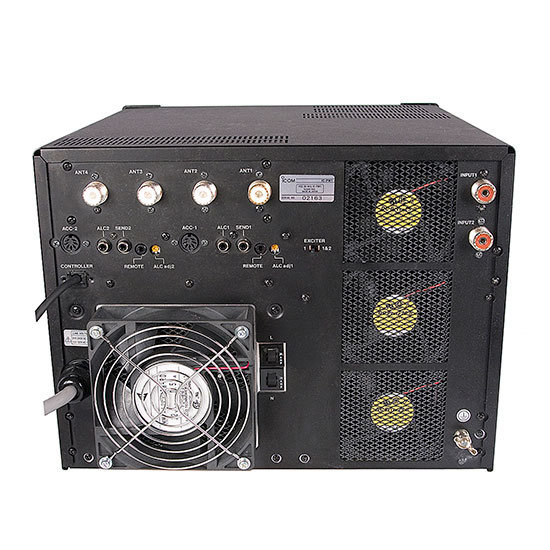

Includes typical amps such as Yaesu Quadra, Icom PW1, ACOM, ALPHA, SPE, Tokyo High Power, ETC.
Included are the following chokes and installation guidelines to suppress RFI in and out:
Deluxe Kit:
RF Input (2x):Ring Filter (1.4” ID) – 5-9 turns of RG-58/8X size through center
RF Output (4x):Snap On Filter (1” ID) – 3 turns of coax cable through center
Relay Cable (2x):Snap On Filter (1/2” ID) – multiple turns through center
ACC1/ACC2 (2x):Snap On Filter (1/2” ID)- multiple turns through filter for each ACC
Transceiver Control/Remote CIV (1X):multiple turns of both cables through filter
AC Power:Snap On Filter (1” ID) – 3 turns of power cord through center
DC Power:Snap On Filter (1” ID) – 3 turns of power cord through center
(use in lieu of RF output)
$149.95
In stock
Brand:Palomar Engineers
MPN:RFI-LA-DELUXE
Filter Power Rating (PEP watts):max coax cable rating
RFI Suppression Range (MHz):1-100 MHz
# Ferrite Filters:13
Typical Use::AC/Dc power, RF In/out, Control Lines
