Dual Port Coax Common Mode Noise Filter - 500 Watts PEP, 1-60 MHz

CMNF-500-50-2

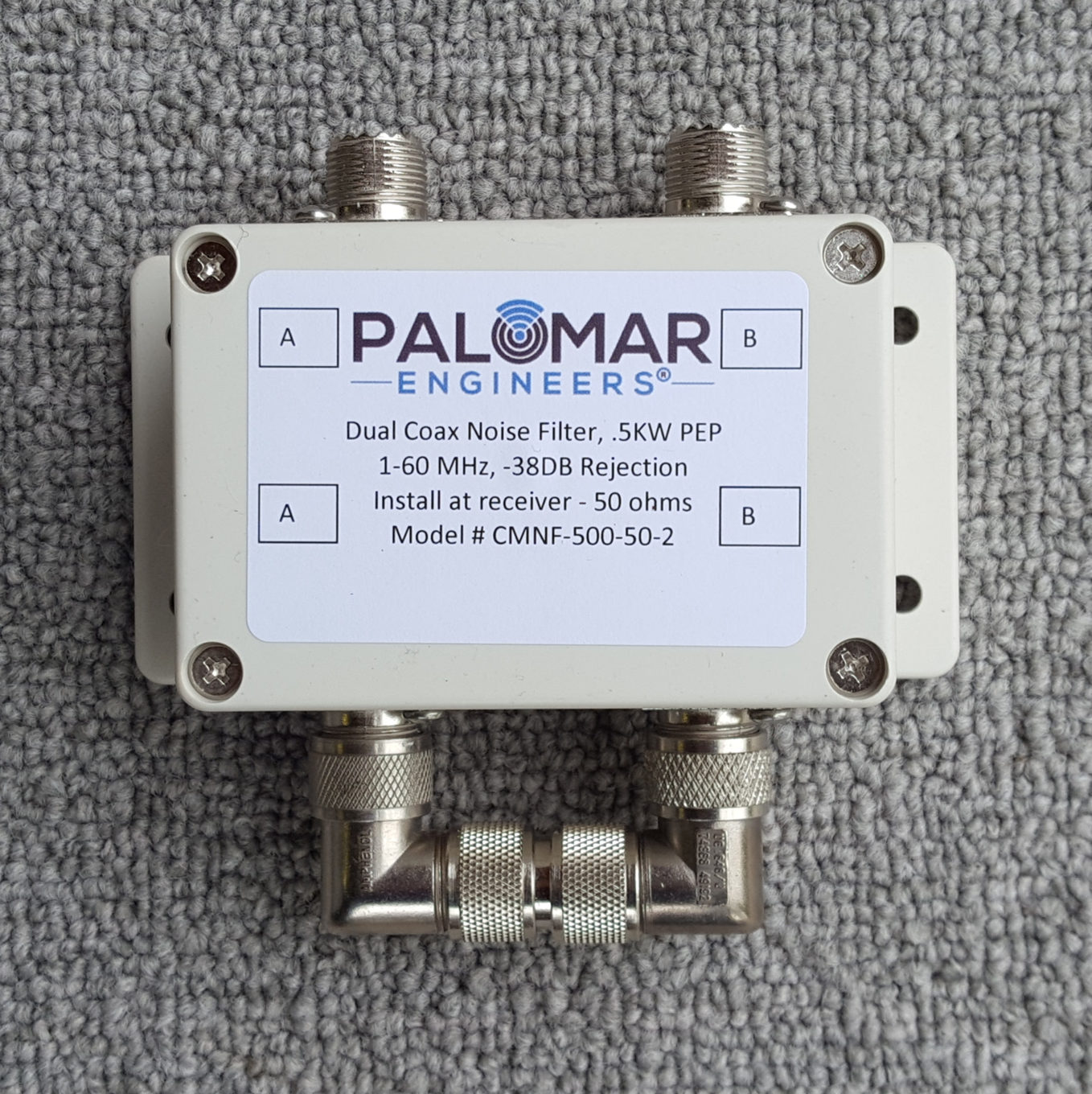

Dual Port Coax Common Mode Noise Filter - 500 Watts PEP, 1-60 MHz CMNF-500-50-2

Now with two independent ports for 2 receivers, or double up the effectiveness of the common mode suppression by cascading both filters. - Works wonders on noise reduction for the 160-40 meter bands where filter can suppress up to 6 "S" units of common mode noise!

For coax feed lines with receive and transmit signals, you will love the small size, wide frequency range and excellent attenuation of common mode noise interference

- Reduces broadband common mode receiver noise* picked up on the outside of the antenna coax feed line.

- Wide frequency range works on all brands of radios and coax fed antennas from 1-60 MHz

- Common mode noise rejection up to -38 DB (3-6 "S" units) depending on frequency

- Simple plug & play installation: plug a short jumper from the CMNF-500-50--2 to your radio and plug the feed line into the other SO-239 CMNF-500-50-2 input. Either connector can be input or output. Rated at 500 watts PEP, 50 ohm input/output

- will work with Bias-T antenna switches and will pass DC voltage from input to output with no attenuation

* not effective for noise from AC power lines or noise received directly by antenna

Installation Note: For best results, and to reduce co-interference between choked and unchoked coax feed lines with multiple antennas, ALL antenna feed lines entering the radio room need to have a separate feed line choke particularly if they are at a different frequency then HF, like VHF or UHF.

If you use a antenna switch for multiple antennas in the 1-61 MHz range, place the CMNF-500HF in the "common" line of the antenna coax switch and the receiver.

If you use a higher powered transceiver over 500 watts PEP or use an amplifier, consider the CMNF-1500HF (1.5KW PEP) or CMNF-5000HF (5KW PEP) placed at the output of the amplifier.


$109.95 In stock
UPC:Does not apply
Brand:Palomar Engineers
MPN:CMNF-500-50-2
Country/Region of Manufacture:United States
Filter Power Rating (PEP watts):500
Choking Impedance (ohms):1000-6500
Common Mode Attenuation (db):21-38 db
RFI Suppression Range (MHz):.1-60
Insertion Loss (db):.025
Enclosure Size (inches):5 1/8 x 2 1/2 x 2
Typical Use::Coax Noise filter at radio end of coax
Dual Port Coax Common Mode Noise Filter - 500 Watts PEP, 1-60 MHzDual Port Coax Common Mode Noise Filter - 500 Watts PEP, 1-60 MHzDual Port Coax Common Mode Noise Filter - 500 Watts PEP, 1-60 MHz
