16:1 Baluns/Ununs

50:800 ohm (16:1) CUBE™ Unun 3-43 MHz - 1KW/2KW PEP

CB-16-1000

50:800 ohm (16:1) CUBE™ Unun 3-43 MHz - 1KW/2KW PEP CB-16-1000

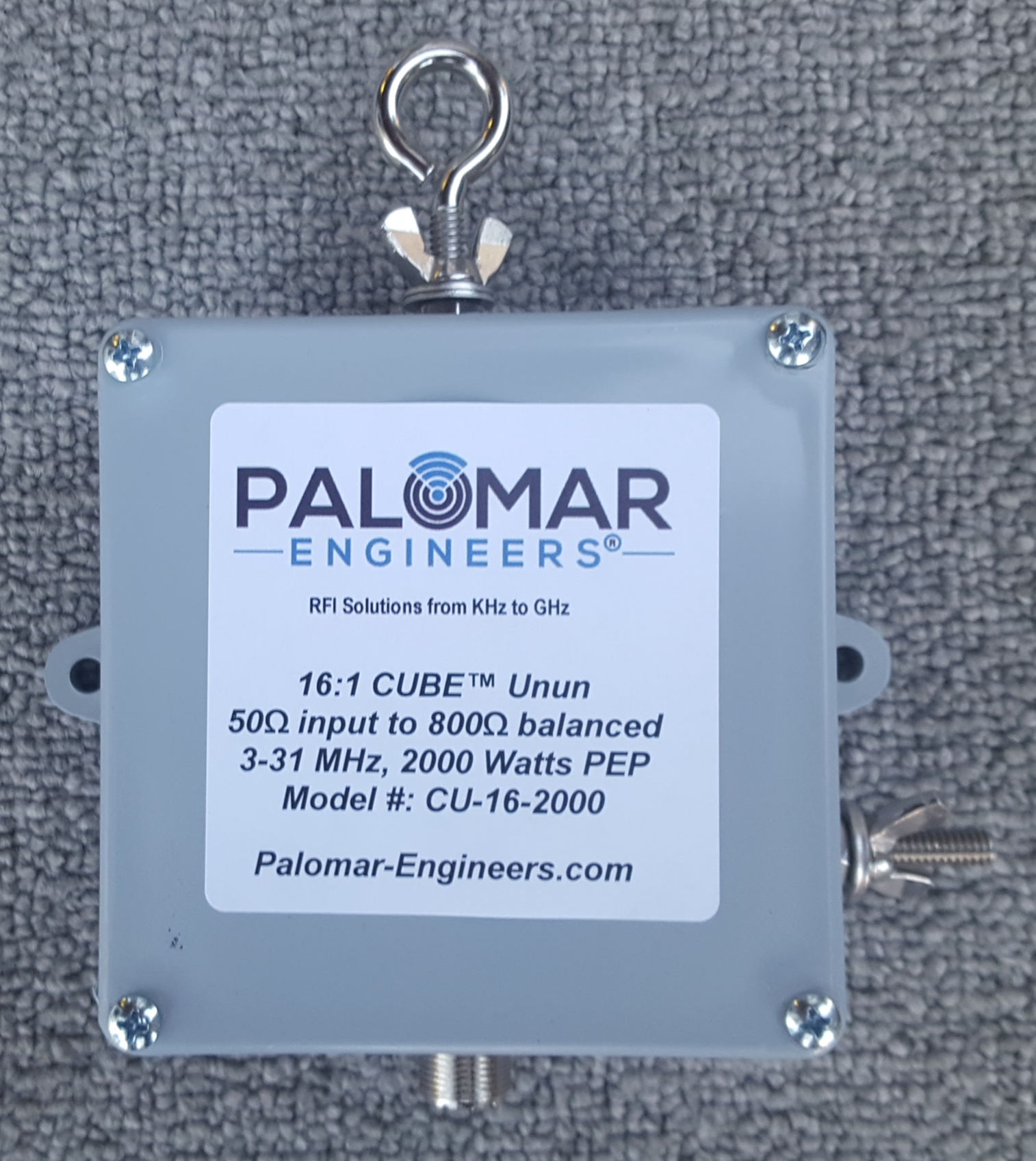

16:1 Ununs are useful between coax and long wires with a load impedance near 800 ohms like a beverage antenna. Shortwave listener antennas also can benefit with the 16:1 unun and it may provide a better match than 9:1 ununs – this means quieter noise levels and stronger signals so you can hear distance stations easier. Output is eyebolt/output on top, ground/counterpoise on side.

Choose 1KW/2KW PEP power option depending on needs.

Custom versions available. 16:1 also available as Balun output.


$79.95 In stock
UPC:Does not apply
Brand:Palomar Engineers
Model:CU-12-1000/2000
Frequency Band(s):80-10 Meters
Country/Region of Manufacture:Made in USA
Type:Unbalanced output
Input ohms/Output ohms:50 to 800
Frequency Range
PEP Power Rating (watts):1000/2000
Weight (pounds):3
Enclosure Size:4" x 4" x 2"
PEP Power Output 1000 Watts (0) 2000 Watts (20)
50:800 ohm (16:1) CUBE™ Unun 3-43 MHz - 1KW/2KW PEP
16:1 Baluns are useful between 750-850 ohm balanced loads where the impedance at the  end of the feed line is 800 ohms (1/2 wavelength feed line), or high impedance feeds for rhombic,  T2FD and traveling wave antennas.

16:1 Ununs are useful between coax and long wires with a load impedance near 800 ohms like a beverage antenna.  Shortwave listener antennas also can benefit with the 16:1 unun and it may provide a better match than 9:1 ununs – this means quieter noise levels and stronger signals so you can hear distance stations easier.
