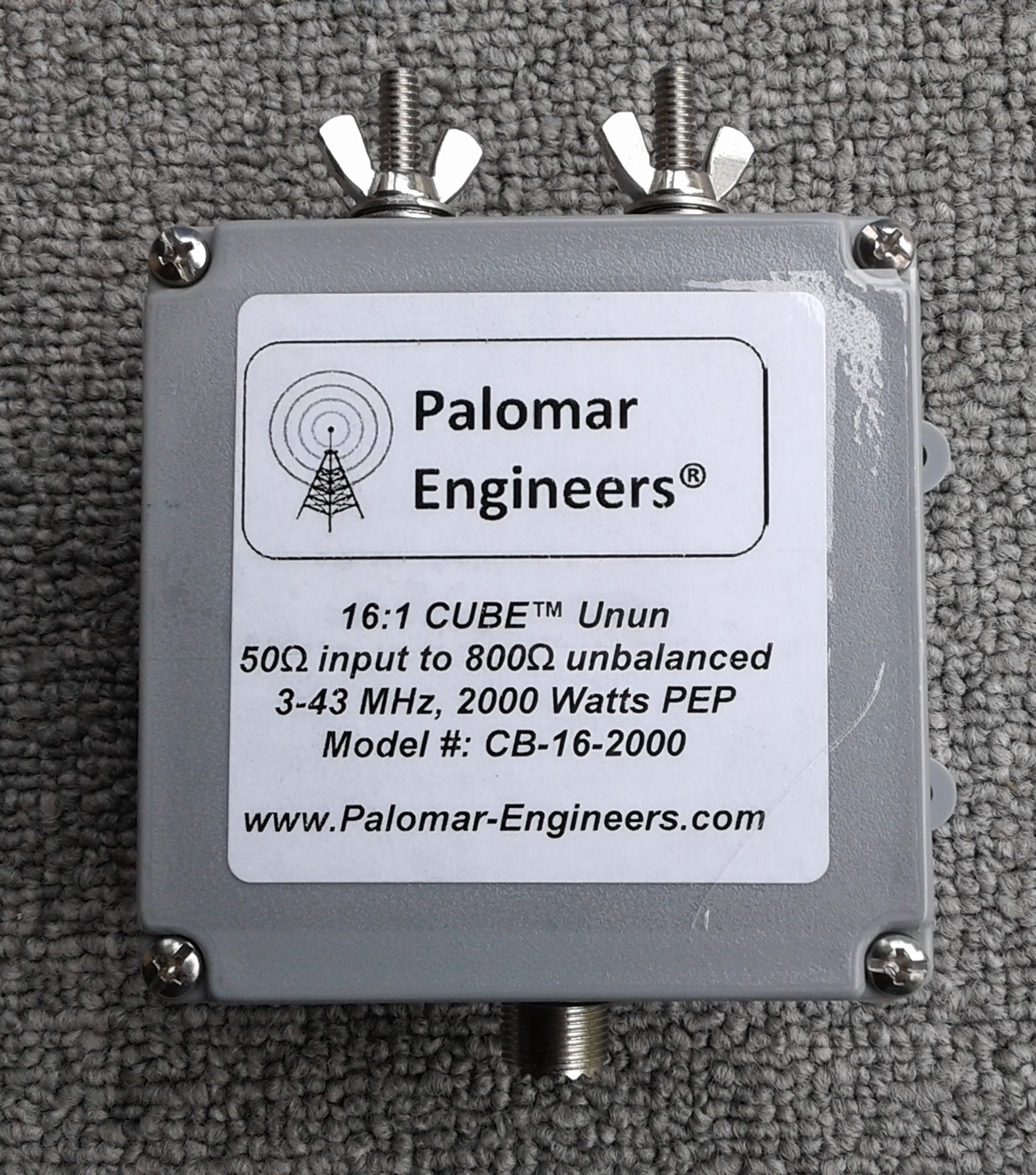

50:800 ohm (16:1) CUBE™ Balun, 3-43 MHz, 2KW PEP

CB-16-2000

50:800 ohm (16:1) CUBE™ Balun, 3-43 MHz, 2KW PEP CB-16-2000

16:1 Baluns are useful between 750-850 ohm balanced loads where the impedance at the end of the feed line is 800 ohms (1/2 wavelength feed line), or high impedance feeds for rhombic, T2FD and traveling wave antennas.

16:1 Ununs are useful between coax and long wires with a load impedance near 800 ohms like a beverage antenna. Shortwave listener antennas also can benefit with the 16:1 unun and it may provide a better match than 9:1 ununs – this means quieter noise levels and stronger signals so you can hear distance stations easier.

CB-16-1000 Graph

16:1 transformers are made to order with manufacturing time of 5 or more days before shipment depending upon quantity.

$89.95 In stock
Brand:Palomar Engineers
Input ohms/Output ohms:50 in/600 out balanced
Frequency Range (MHz):1-31 MHz
PEP Power Rating (watts):2000
Output Connector Top Studs(2)/wingnut (0) Eyebolts on Side/Top Eyebolt (0) Side Studs(2), Top Eyebolt (0)
50:800 ohm (16:1) CUBE™ Balun, 3-43 MHz, 2KW PEP
16:1 Baluns are useful between 750-850 ohm balanced loads where the impedance at the  end of the feed line is 800 ohms (1/2 wavelength feed line), or high impedance feeds for rhombic,  T2FD and traveling wave antennas.

16:1 Ununs are useful between coax and long wires with a load impedance near 800 ohms like a beverage antenna.  Shortwave listener antennas also can benefit with the 16:1 unun and it may provide a better match than 9:1 ununs – this means quieter noise levels and stronger signals so you can hear distance stations easier.
