12:1 Baluns/Ununs

50:600 ohm, (12:1) CUBE™ Balun/Unun, 1.8-31 MHz Balun/Unun, RX Only/1KW/2KW/3KW PEP, T2FD, Rhombic, End Fed, Flagpole

CB-12-1000TS
$119.95
In stock
1
Product Details
Country/Region of Manufacture: United States
Type: New
Input ohms/Output ohms: 50 in/600 out balanced (balun) or unbalunced (unun)
Frequency Range < 2:1 SWR (MHz): 1.8-31
PEP Power Rating (watts): RX only/1000/2000/3000
Insertion Loss (dB): < .1 dB
Input Connector: SO-239
Hardware Type: Stainless Steel
Enclosure Size: 4 x 4 x 2, 3KW = 4 X 4 x 4
Weight (pounds): 2


HF 12:1 Impedance Transformers

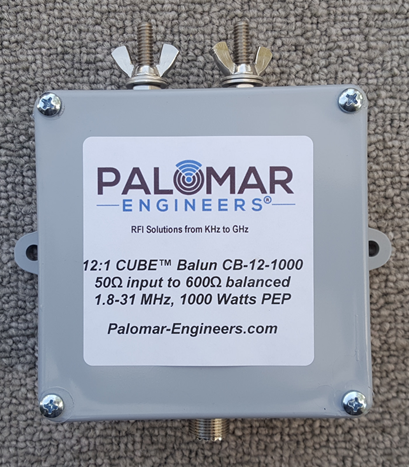

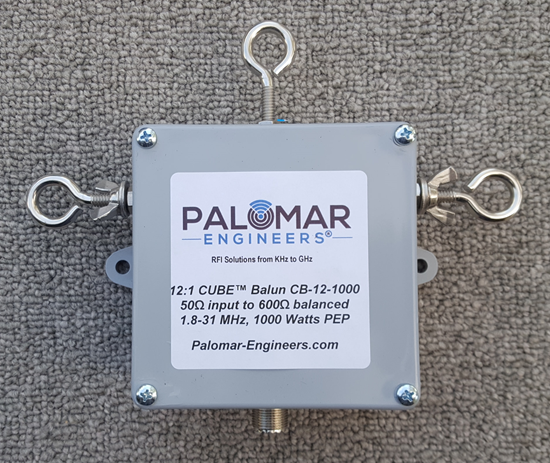

12:1 Baluns are useful transformers for 600 ohm balanced loads the impedance at the end of the feed line is 600 ohms (1/2 wavelength feed line), or high impedance feeds for rhombic, T2FD and traveling wave antennas.

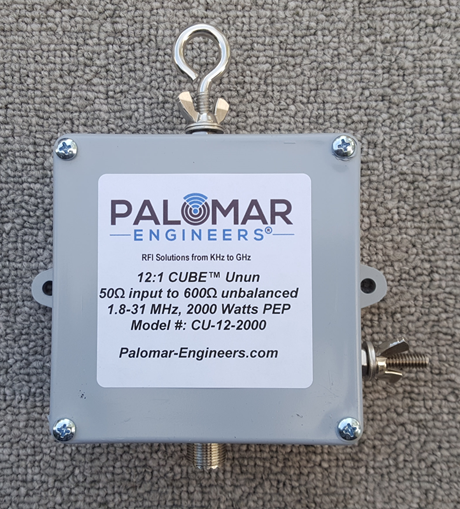

12:1 Ununs are useful between coax and long wires with a load impedance near 600 ohms like a beverage antenna. Shortwave listener antennas also can benefit with the 12:1 unun and it may provide a better match than 9:1 ununs – this means quieter noise levels and stronger signals so you can hear distance stations easier.

For end fed antennas, use a 9:1 unun or 12:1 unun - also available in the "Bullet" antenna end fed style (Bullet-12U-500)

Receive only baluns/ununs are rated for 100 watts PEP

All enclosure boxes have 2 side flanges with 1/4" holes.

All of these products are made to order and typical production time is 10 days depending on quantity.

Save this product for later
12:1 Baluns are useful between 600-650 ohm balanced loads the impedance at the  end of the feed line is 600 ohms (1/2 wavelength feed line), or high impedance feeds for rhombic,  T2FD and traveling wave antennas.

12:1 Ununs are useful between coax and long wires with a load impedance near 600 ohms like a beverage antenna.  Shortwave listener antennas also can benefit with the 12:1 unun and it may provide a better match than 9:1 ununs – this means quieter noise levels and stronger signals so you can hear distance stations easier.
