50:450 ohm (9:1) CUBE™ Unun, 1.8-61 MHz, 1.5 KW, End Fed Long Wire

CU-9-1500
$109.95
In stock
1
Product Details
MPN: CU-9-1500
Type: NEW
Input ohms/Output ohms: 50 in / 450 output
Frequency Range < 2:1 SWR (MHz): 1-31
PEP Power Rating (watts): 1500

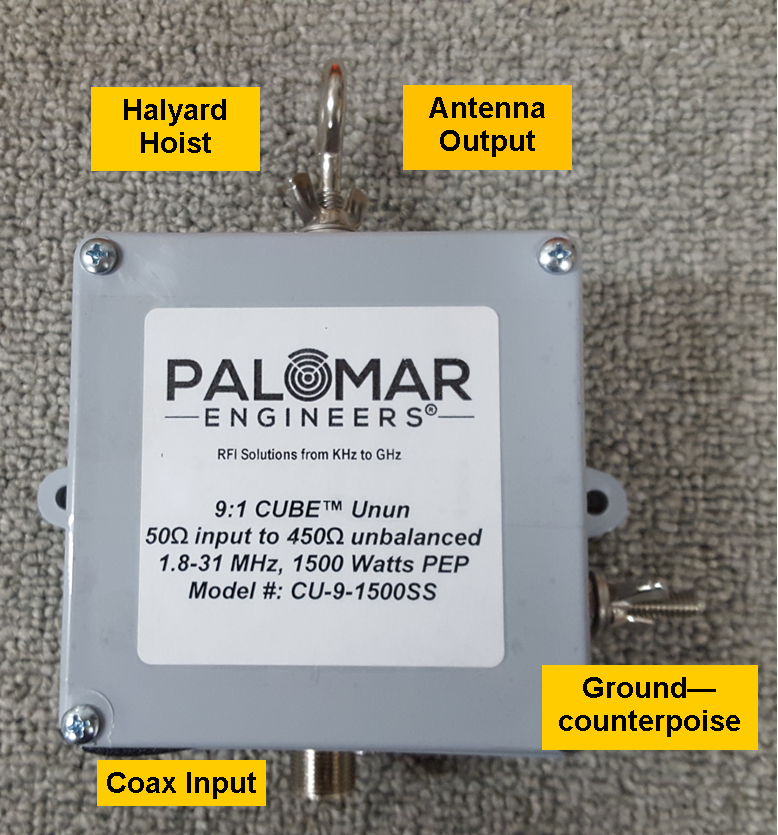

Model CU-9-1500 is a 9:1 multi-core unun housed in a NEMA enclosure box (4″ x 4″ x 2″) with top stud/eyebolt output used to translate a 50 ohm input up to 450 ohms at RF power levels up to 1500 watts PEP when used with a matched load.

Great for end fed antennas - great for FT-8 and digital mode power ratings are approximately 30% of PEP ratings into a matched 450 ohm load. For non-resonant end fed antennas, you will need a feed line choke on the coax. See typical antenna configuration notes below for details.

Non-Resonant End Fed Antenna Configuration Notes
