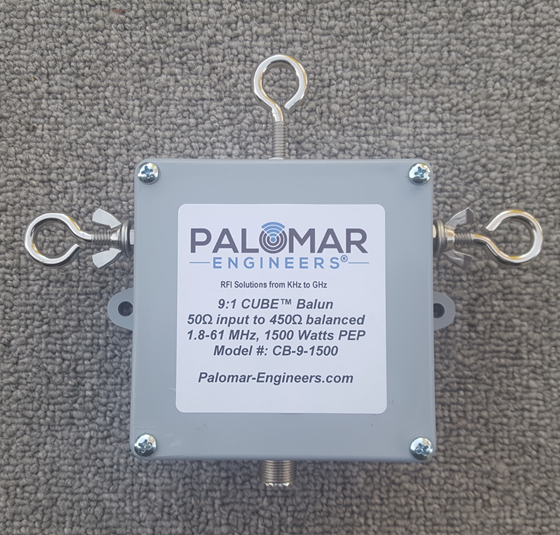

50:450 ohm (9:1) CUBE™ Balun, 1.8-61 MHz, 1.5 KW, ladder line, ZEPP, T2FD

CB-9-1500TS

50:450 ohm (9:1) CUBE™ Balun, 1.8-61 MHz, 1.5 KW, ladder line, ZEPP, T2FD CB-9-1500TS
Model CB-9-1500 is a 9:1 multi-core, balanced output balun at RF power levels up to 1500 watts PEP - higher power, superior bandwidth to balun designs, dx engineering, array solutions, bytemark, comtek
$89.95 In stock
Brand:Palomar Engineers
MPN:CB-9-1500TS (top studs), CB-9-1500EB (eyebolts)
Frequency Band(s):160-6 meters
Country/Region of Manufacture:USA
Input ohms/Output ohms:50 in / 450 output
Frequency Range
PEP Power Rating (watts):1500
Input Connector:SO-239
Output Connector(s):Top Studs/Side Eyebolts
Hardware Type:Stainless Steel
Enclosure Size:4" x 4" x 2"
Weight (pounds):3
Antenna Compatability:Folded Dipole, T2FD, BBTD, ALE
Output Connectos Top Studs/wingnuts (0) Top Eyebolt/Halyard, side eyebolts/output (10)
50:450 ohm (9:1) CUBE™ Balun, 1.8-61 MHz, 1.5 KW, ladder line, ZEPP, T2FD50:450 ohm (9:1) CUBE™ Balun, 1.8-61 MHz, 1.5 KW, ladder line, ZEPP, T2FD50:450 ohm (9:1) CUBE™ Balun, 1.8-61 MHz, 1.5 KW, ladder line, ZEPP, T2FD50:450 ohm (9:1) CUBE™ Balun, 1.8-61 MHz, 1.5 KW, ladder line, ZEPP, T2FD
