50:300 (6:1) CUBE™ Balun, 1-61 MHz, 1.5/3KW (choose top stud/eyebolt/power rating)

SKU CB-6-1500TS
$89.95
In stock
1
Product Details

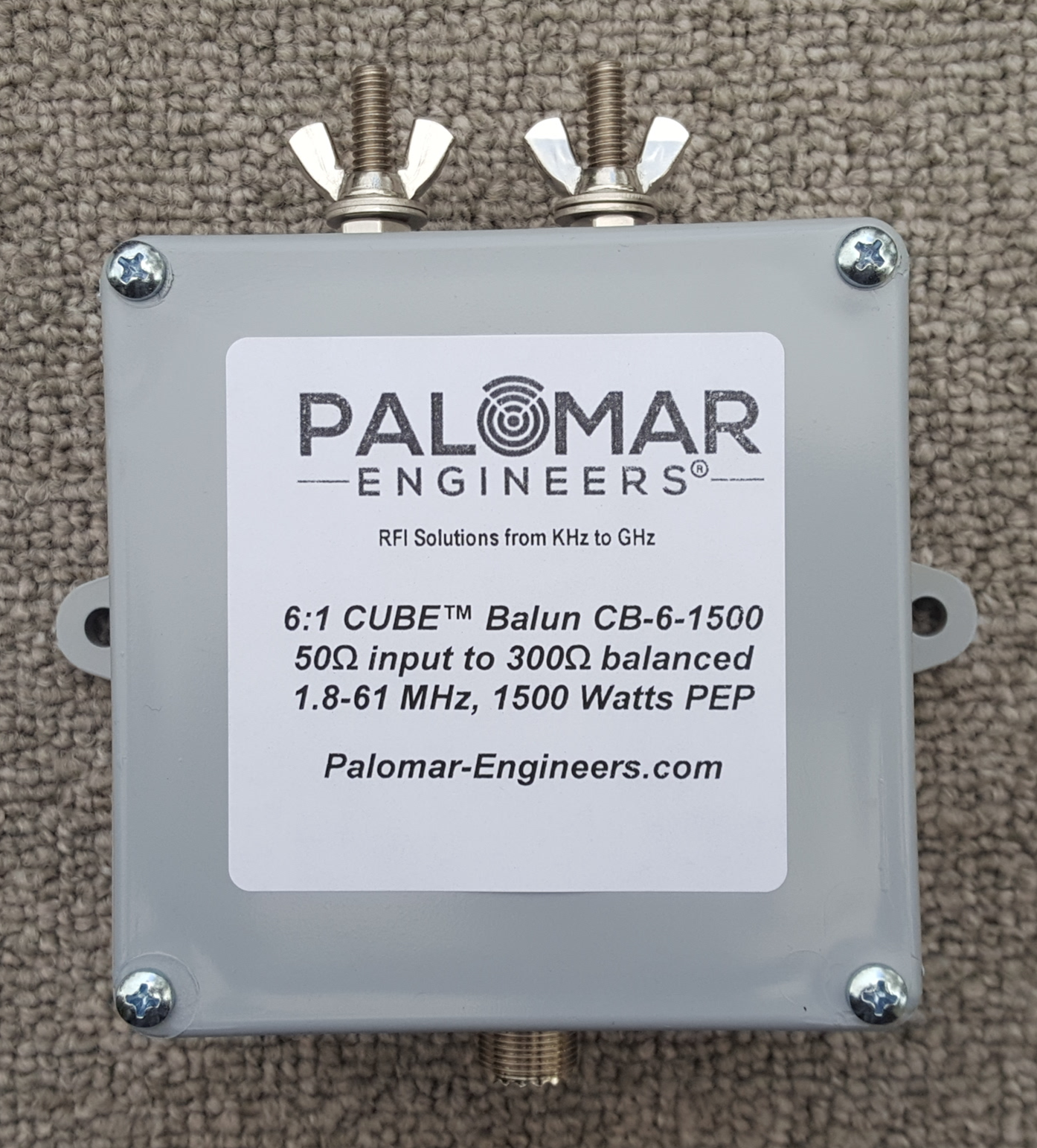

1500/3000 Watt 6:1 CUBE Balun™ – Model CB-6-1500/3000

Model CB-6-1500/3000 is a 6:1 (300:50) balun housed in a NEMA enclosure box (1.5KW in 4″ x 4″ x 2″, 3KW in 6" x 6" x 4") with two top studs capable of input power levels up to 1.5KW PEP watts when used with a matched load. The 6:1 ratio takes 50 ohms input and matches to 300 ohms balanced output from 1-61 MHz with SWR 60 feet over ground, Hertz and folded dipole antennas, T2FD etc. 8 core, Use “EB” version with side eye bolts for wire attachments for OCF dipole use.

Typical SWR and impedance transformation from 1-61 MHZ shown below:

CB 6 1500 Graph png - Antenna Products

This transformer requires a feed line choke to isolate the coax feed line from the antenna. A coax noise filter is also recommended.

Save this product for later
Palomar antenna products include feed line chokes, feed line to antenna matching transformers, static bleeders and other accessories. Click on the link to connect to the product you need.
