5:1 Baluns/Ununs

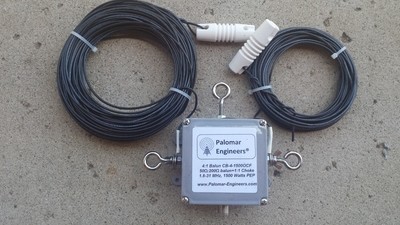

5:1 CUBE™ Unun – Model CB-5-1500 (50:250 Ohm, 1.8-61 MHz, 1.5KW PEP)

Application. For traveling wave, end fed or portable 20-31 foot vertical antennas the 5:1 balun makes a good transformer for converting 50 ohm coax to a 250 ohm feed point. If you use the antenna on multiple bands, the feed point impedance may not always be 250 ohms and use of the unun at high (>350 ohms) or low (<100 ohms) will require reduced power input or the unun may have its power ratings exceeded and damage to the unun may occur. The (5:1 conversion ratio will change for loads other than 250 ohms unbalanced.

Typical application:

CU-5-1500 antenna
