Solar Junction Box Ferrite Filter - ID"1"

RFI-PV-JB

Solar Junction Box Ferrite Filter - ID"1" RFI-PV-JB

Solar Junction Box Ferrite Snap On Filter, ID = 1.02 in/25.9 mm, Mix 31

Also known as Big Clamp On. Very useful for AC/DC power, coax cable, etc.

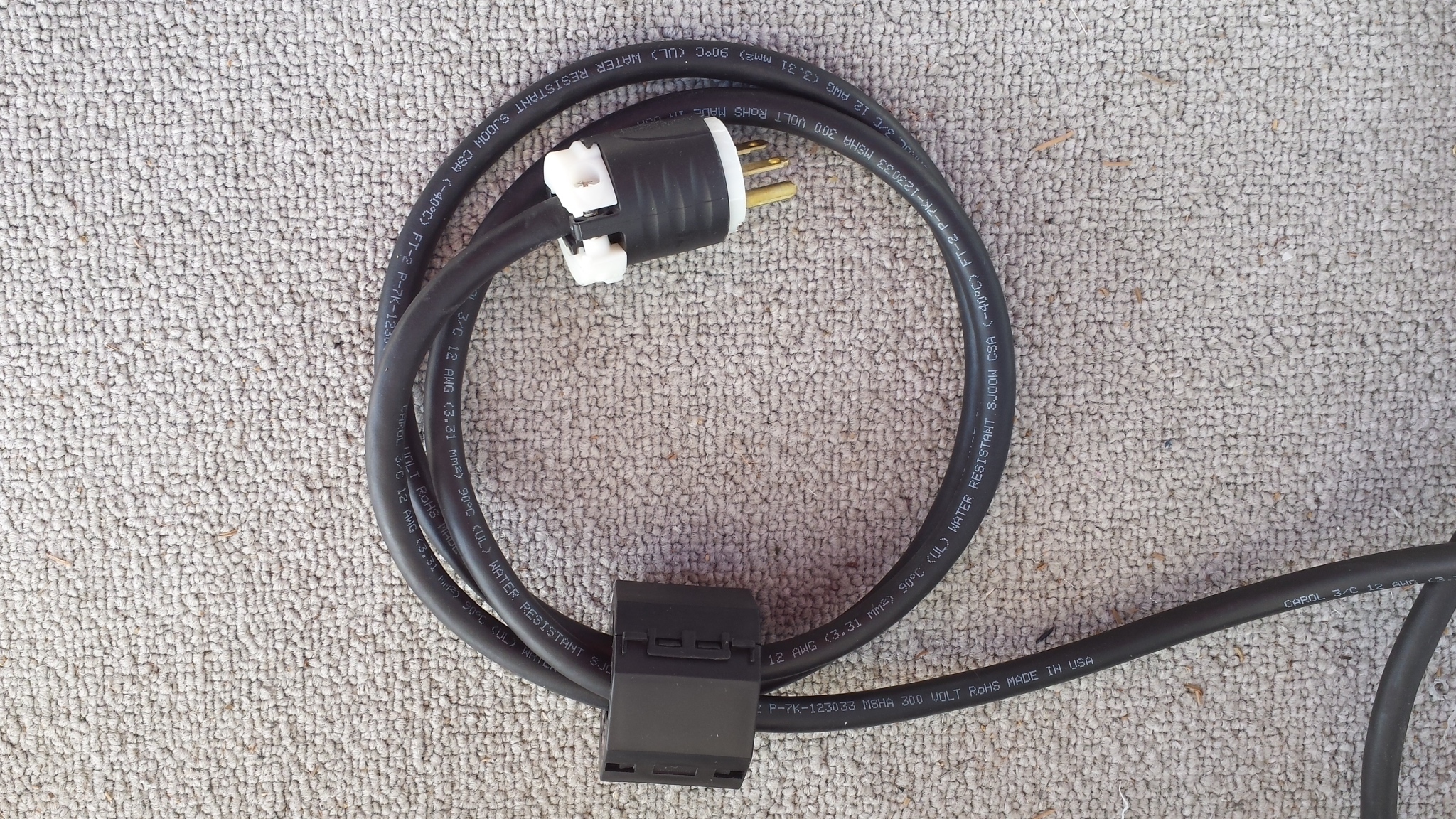

Cable not included as shown in picture.

$19.5 In stock
Initial Permeability::1500
Material::MnZn
Max cable size - in/mm::1.0/25.4
OD (A) - in/mm::2.22/56.4
ID (B) - in/mm::1.02/25.9
Length (C) - in/mm::1.69/41.9
Z (ohms per bead - single turn 1 MHz)::45
Z (ohms per bead - single turn 5 MHz)::90
Z (ohms per bead - single turn 10 MHz)::125
Z (ohms per bead - single turn 25 MHz)::218
Z (ohms per bead - single turn 100 MHz)::375
Z ohms (per bead - single turn 250 MHz)::340
