QRP Baluns/Ununs (1:1-16:1) - Beverage, 25 watt PEP

MU-1

QRP Baluns/Ununs (1:1-16:1) - Beverage, 25 watt PEP MU-1

Our QRP (< 25 watts PEP, 1.8-30 MHz) baluns and ununs come in a variety of impedance ratios and are available as baluns with 50 ohm input, balanced output or ununs with 50 ohm unbalanced to unbalanced (one side grounded) output. Both baluns and ununs come pre-wound and all you need to add are the input and output connectors and your own enclosure. Great for portable end fed long wire antennas, 31/43' verticals, loops, dipoles, beverages, etc.

Balun part #Unun part #Z inZ out
MB-.5
MU-.55025
MB-1MU-15050
MB-1.5MU-1.55075
MB-2MU-250100
MB-3MU-350150
MB-4MU-450200
MB-5MU-550250
MB-6MU-650300
MB-7.5MU-7.550375
MB-9MU-950450
MB-12MU-1250600
MB-16MU-1650800

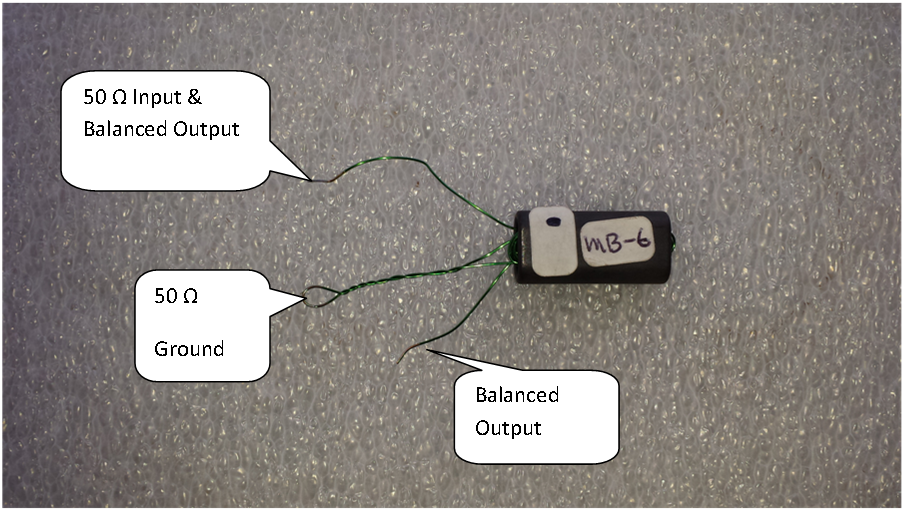

MB-6 Balun

$14.95 In stock
Brand:Palomar Engineers
input ohms/output ohms::50 in, various ouputs from 50-800 per balun/unun
Frequency Range (MHz):1.8-30
PEP Power Rating (watts)::25
Selection impedance ratio 50:25 (0) 50:50 (0) 50:75 (0) 50:100 (0) 50:200 (0) 50:250 (0) 50:300 (0) 50:375 (0) 50:450 (0) 50:600 (0) 50:800 (0)
Select balanced or unbalanced output balanced (balun) (0) unbalanced (unun) (0)
