FSB75-3/4, ID=3/4", RFI Range 150Khz-10 MHz

FSB75-3/4

FSB75-3/4, ID=3/4", RFI Range 150Khz-10 MHz FSB75-3/4

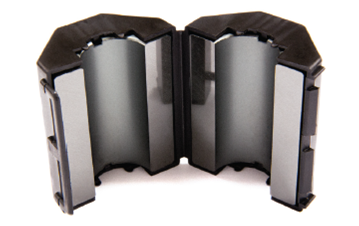

Ferrite Snap On, ID = .74 in/18.8 mm, Mix 75

$27.5 In stock
Initial Permeability::5000
Material::MnZn
Max cable size - in/mm::.709/18
OD (A) - in/mm::1.52/38.6
ID (B) - in/mm::.74/18.8
Length (C) - in/mm::1.87/47.5
Z (ohms per bead - single turn 200 KHz)::30
Z (ohms per bead - single turn 500 KHz)::92
Z (ohms per bead - single turn 1 MHz)::130
Z (ohms per bead - single turn 2 MHz)::81
Z (ohms per bead - single turn 5 MHz)::66
FSB75-3/4, ID=3/4", RFI Range 150Khz-10 MHz
