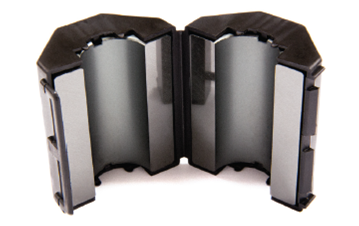

FSB61-3/8, ID=3/8", RFI Range 200-2000 MHz

FSB61-3/8

FSB61-3/8, ID=3/8", RFI Range 200-2000 MHz FSB61-3/8
$5.95 In stock
Initial Permeability::125
Material::NiZn
Max cable size - in/mm::.388/9.85
OD (A) - in/mm::.906/23
ID (B) - in/mm::.4/10.15
Length (C) - in/mm::1.55/39.4
Z (ohms per bead - single turn 100 MHz)::180
Z ohms (per bead - single turn 250 MHz)::285
Z (ohms per bead - single turn 500 MHz)::380
Z (ohms per bead - single turn 1000 MHz)::430
FSB61-3/8, ID=3/8", RFI Range 200-2000 MHz
