FSB31-1/2, ID=1/2", RFI Range 1-300 MHz, 1 Piece

FSB31-1/2-1

FSB31-1/2, ID=1/2", RFI Range 1-300 MHz, 1 Piece FSB31-1/2-1

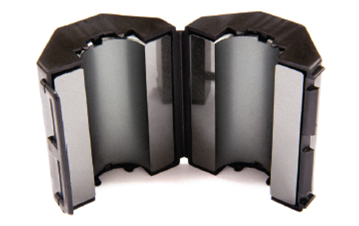

Ferrite Snap On, ID = .514in/13.1 mm, Mix 31

# Turns of RG-8X = 2

# Turns of RG-213 = 1

$5.95 In stock
Initial Permeability::1500
Material::MnZn
Max cable size - in/mm::.5/12.7
OD (A) - in/mm::1.22/31
ID (B) - in/mm::.514/13.1
Length (C) - in/mm::1.55/5
Z (ohms per bead - single turn 1 MHz)::25
Z (ohms per bead - single turn 5 MHz)::71
Z (ohms per bead - single turn 10 MHz)::100
Z (ohms per bead - single turn 25 MHz)::156
Z (ohms per bead - single turn 100 MHz)::260
Z ohms (per bead - single turn 250 MHz)::260
FSB31-1/2, ID=1/2", RFI Range 1-300 MHz, 1 Piece
