FB63-43 - ID=.193", RFI Range 20-250 MHz

FB63-43-1

FB63-43 -  ID=.193", RFI Range 20-250 MHz FB63-43-1

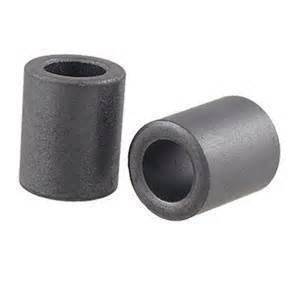

Ferrite Slip On Bead, ID = .193in/4.75mm, Mix 43 - excellent tor individual wire common mode choke, 1 piece

$0.25 In stock
MPN:FB63-43
Initial Permeability::5000
Material::MnZn
Max cable size - in/mm::.193/4.75
OD (A) - in/mm::.375/9.5
ID (B) - in/mm::.193/4.75
Length (C) - in/mm::.41/10.4
Z (ohms per bead - single turn 1 MHz)::5
Z (ohms per bead - single turn 5 MHz)::20
Z (ohms per bead - single turn 10 MHz)::34
Z (ohms per bead - single turn 25 MHz)::53
Z (ohms per bead - single turn 100 MHz)::80
Z ohms (per bead - single turn 250 MHz)::92
FB63-43 -  ID=.193", RFI Range 20-250 MHz
