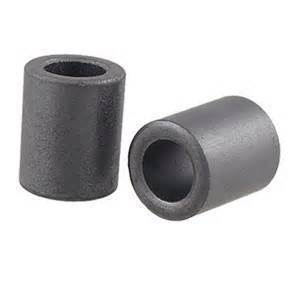

FB56-61 - 1/4" ID, RFI Range 200-1000 MHz

FB56-61-1

FB56-61 - 1/4" ID, RFI Range 200-1000 MHz FB56-61-1
$2.5 In stock
Initial Permeability::125
Material::NiZn
Max cable size - in/mm::.25/6.3
OD (A) - in/mm::.562/14.3
ID (B) - in/mm::.25/6.4
Length (C) - in/mm::1.125/28.6
Z (ohms per bead - single turn 100 MHz)::205
Z ohms (per bead - single turn 250 MHz)::295
Z (ohms per bead - single turn 500 MHz)::370
Z (ohms per bead - single turn 1000 MHz)::350
FB56-61 - 1/4" ID, RFI Range 200-1000 MHz
