FB56-43 - 1/4" ID, RFI Range 25-300 MHz

FB56-43-1

FB56-43 - 1/4" ID, RFI Range 25-300 MHz FB56-43-1

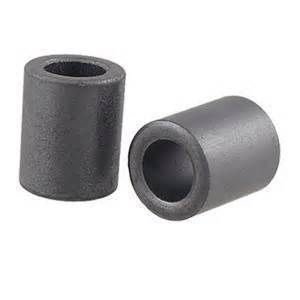

Ferrite Slip On Bead - ID = .25 in/6.4mm - Mix 43, 1 piece

$1.65 In stock
Initial Permeability::850
Material::NiZn
Max cable size - in/mm::.25/6.3
OD (A) - in/mm::.562/14/3
ID (B) - in/mm::.25/6.4
Length (C) - in/mm::1.125/28.6
Z (ohms per bead - single turn 1 MHz)::25
Z (ohms per bead - single turn 5 MHz)::75
Z (ohms per bead - single turn 10 MHz)::105
Z (ohms per bead - single turn 25 MHz)::171
Z (ohms per bead - single turn 100 MHz)::250
Z ohms (per bead - single turn 250 MHz)::255
